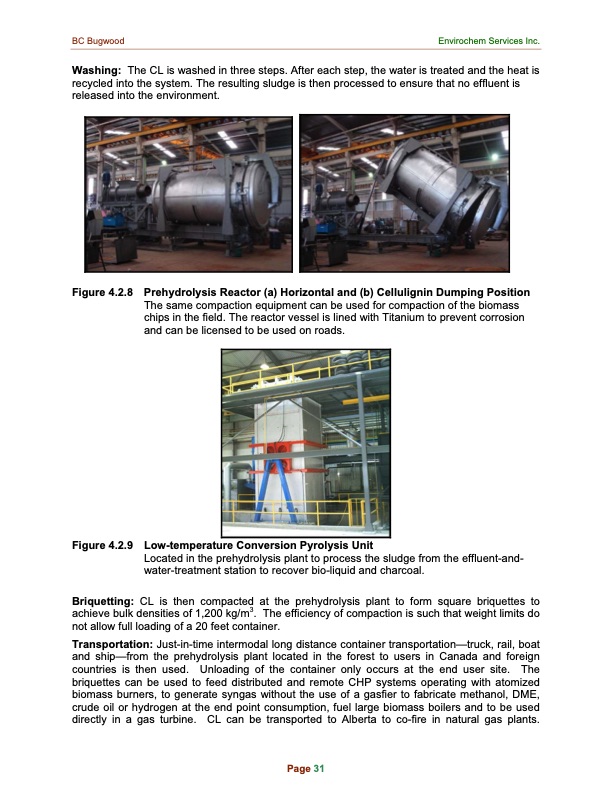

BC Bugwood Envirochem Services Inc. Washing: The CL is washed in three steps. After each step, the water is treated and the heat is recycled into the system. The resulting sludge is then processed to ensure that no effluent is released into the environment. Figure 4.2.8 Prehydrolysis Reactor (a) Horizontal and (b) Cellulignin Dumping Position The same compaction equipment can be used for compaction of the biomass chips in the field. The reactor vessel is lined with Titanium to prevent corrosion and can be licensed to be used on roads. Low-temperature Conversion Pyrolysis Unit Located in the prehydrolysis plant to process the sludge from the effluent-and- water-treatment station to recover bio-liquid and charcoal. Figure 4.2.9 Briquetting: CL is then compacted at the prehydrolysis plant to form square briquettes to achieve bulk densities of 1,200 kg/m3. The efficiency of compaction is such that weight limits do not allow full loading of a 20 feet container. Transportation: Just-in-time intermodal long distance container transportation—truck, rail, boat and ship—from the prehydrolysis plant located in the forest to users in Canada and foreign countries is then used. Unloading of the container only occurs at the end user site. The briquettes can be used to feed distributed and remote CHP systems operating with atomized biomass burners, to generate syngas without the use of a gasfier to fabricate methanol, DME, crude oil or hydrogen at the end point consumption, fuel large biomass boilers and to be used directly in a gas turbine. CL can be transported to Alberta to co-fire in natural gas plants. Page 31PDF Image | IDENTIFYING ENVIRONMENTALLY PREFERABLE USES FOR BIOMASS
