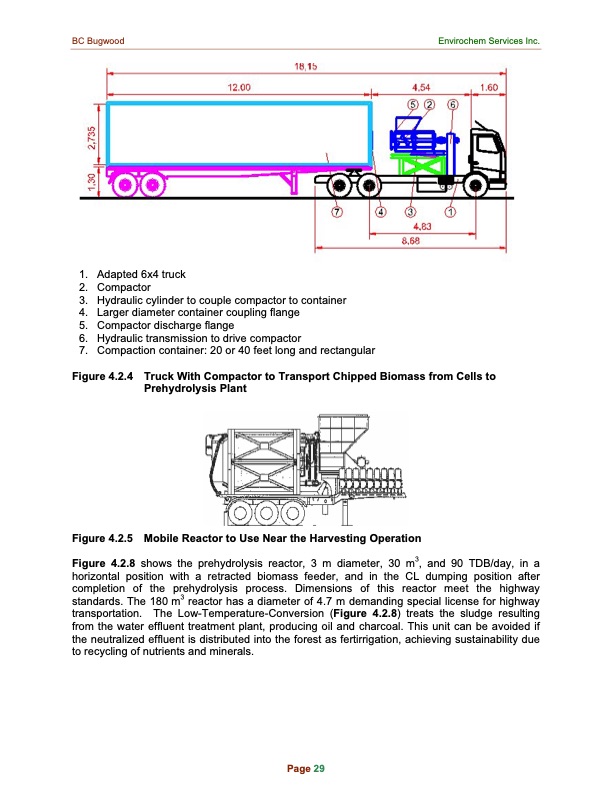

BC Bugwood Envirochem Services Inc. 1. Adapted 6x4 truck 2. Compactor 3. Hydraulic cylinder to couple compactor to container 4. Larger diameter container coupling flange 5. Compactor discharge flange 6. Hydraulic transmission to drive compactor 7. Compaction container: 20 or 40 feet long and rectangular Figure 4.2.4 Truck With Compactor to Transport Chipped Biomass from Cells to Prehydrolysis Plant Figure 4.2.5 Mobile Reactor to Use Near the Harvesting Operation Figure 4.2.8 shows the prehydrolysis reactor, 3 m diameter, 30 m3, and 90 TDB/day, in a horizontal position with a retracted biomass feeder, and in the CL dumping position after completion of the prehydrolysis process. Dimensions of this reactor meet the highway standards. The 180 m3 reactor has a diameter of 4.7 m demanding special license for highway transportation. The Low-Temperature-Conversion (Figure 4.2.8) treats the sludge resulting from the water effluent treatment plant, producing oil and charcoal. This unit can be avoided if the neutralized effluent is distributed into the forest as fertirrigation, achieving sustainability due to recycling of nutrients and minerals. Page 29PDF Image | IDENTIFYING ENVIRONMENTALLY PREFERABLE USES FOR BIOMASS
