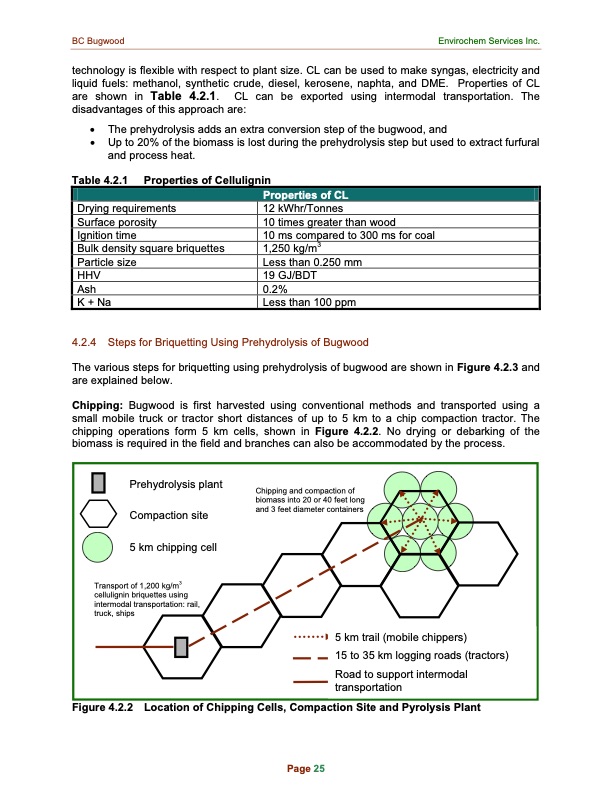

BC Bugwood Envirochem Services Inc. technology is flexible with respect to plant size. CL can be used to make syngas, electricity and liquid fuels: methanol, synthetic crude, diesel, kerosene, naphta, and DME. Properties of CL are shown in Table 4.2.1. CL can be exported using intermodal transportation. The disadvantages of this approach are: • The prehydrolysis adds an extra conversion step of the bugwood, and • Up to 20% of the biomass is lost during the prehydrolysis step but used to extract furfural and process heat. Table 4.2.1 Properties of Cellulignin Properties of CL Drying requirements Surface porosity Ignition time Bulk density square briquettes Particle size HHV Ash K + Na 12 kWhr/Tonnes 10 times greater than wood 10 ms compared to 300 ms for coal 1,250 kg/m3 Less than 0.250 mm 19 GJ/BDT 0.2% Less than 100 ppm 4.2.4 Steps for Briquetting Using Prehydrolysis of Bugwood The various steps for briquetting using prehydrolysis of bugwood are shown in Figure 4.2.3 and are explained below. Chipping: Bugwood is first harvested using conventional methods and transported using a small mobile truck or tractor short distances of up to 5 km to a chip compaction tractor. The chipping operations form 5 km cells, shown in Figure 4.2.2. No drying or debarking of the biomass is required in the field and branches can also be accommodated by the process. Prehydrolysis plant Compaction site 5 km chipping cell Transport of 1,200 kg/m3 cellulignin briquettes using intermodal transportation: rail, truck, ships Chipping and compaction of biomass into 20 or 40 feet long and 3 feet diameter containers 5 km trail (mobile chippers) 15 to 35 km logging roads (tractors) Road to support intermodal transportation Figure 4.2.2 Location of Chipping Cells, Compaction Site and Pyrolysis Plant Page 25PDF Image | IDENTIFYING ENVIRONMENTALLY PREFERABLE USES FOR BIOMASS
