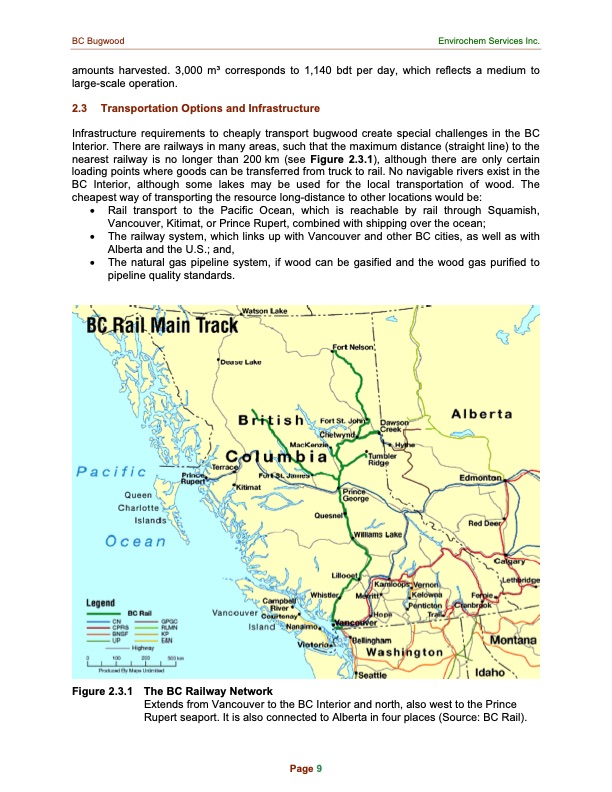

BC Bugwood Envirochem Services Inc. amounts harvested. 3,000 m3 corresponds to 1,140 bdt per day, which reflects a medium to large-scale operation. 2.3 Transportation Options and Infrastructure Infrastructure requirements to cheaply transport bugwood create special challenges in the BC Interior. There are railways in many areas, such that the maximum distance (straight line) to the nearest railway is no longer than 200 km (see Figure 2.3.1), although there are only certain loading points where goods can be transferred from truck to rail. No navigable rivers exist in the BC Interior, although some lakes may be used for the local transportation of wood. The cheapest way of transporting the resource long-distance to other locations would be: • Rail transport to the Pacific Ocean, which is reachable by rail through Squamish, Vancouver, Kitimat, or Prince Rupert, combined with shipping over the ocean; • The railway system, which links up with Vancouver and other BC cities, as well as with Alberta and the U.S.; and, • The natural gas pipeline system, if wood can be gasified and the wood gas purified to pipeline quality standards. Figure 2.3.1 The BC Railway Network Extends from Vancouver to the BC Interior and north, also west to the Prince Rupert seaport. It is also connected to Alberta in four places (Source: BC Rail). Page 9PDF Image | IDENTIFYING ENVIRONMENTALLY PREFERABLE USES FOR BIOMASS
