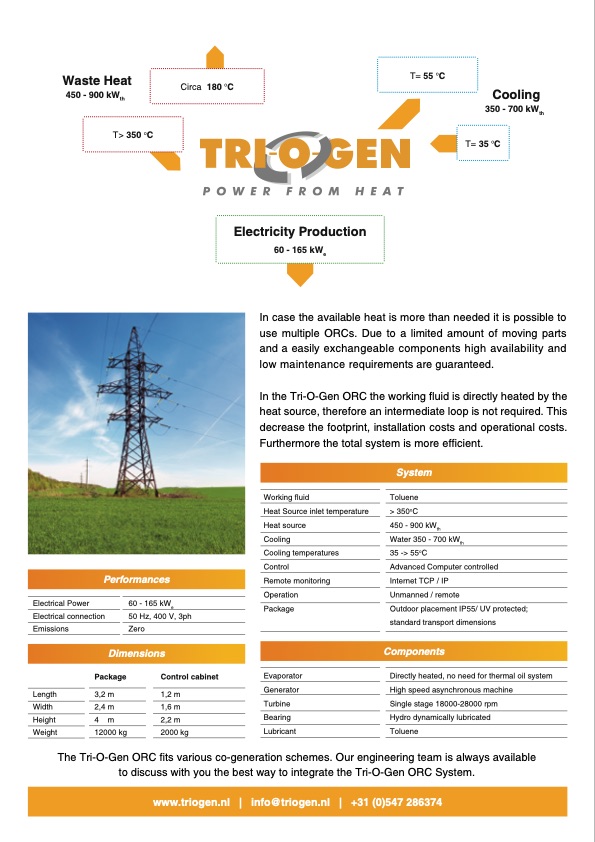

Text from PDF Page: 002

Waste Heat 450 - 900 kWth Cooling 350 - 700 kWth Circa 180 oC T= 55 oC T> 350 oC T= 35 oC Electricity Production 60 - 165 kWe In case the available heat is more than needed it is possible to use multiple ORCs. Due to a limited amount of moving parts and a easily exchangeable components high availability and low maintenance requirements are guaranteed. In the Tri-O-Gen ORC the working fluid is directly heated by the heat source, therefore an intermediate loop is not required. This decrease the footprint, installation costs and operational costs. Furthermore the total system is more efficient. Performances Working fluid Heat Source inlet temperature Heat source Cooling Cooling temperatures Control Remote monitoring Operation Package Evaporator Generator Turbine Bearing Lubricant System Toluene > 350oC 450 - 900 kWth Water 350 - 700 kWth 35 -> 55oC Advanced Computer controlled Internet TCP / IP Unmanned / remote Outdoor placement IP55/ UV protected; standard transport dimensions Components Directly heated, no need for thermal oil system High speed asynchronous machine Single stage 18000-28000 rpm Hydro dynamically lubricated Toluene Electrical Power Electrical connection Emissions 60 - 165 kWe 50 Hz, 400 V, 3ph Zero Dimensions Length Width Height Weight Package 3,2 m 2,4 m 4 m 12000 kg Control cabinet 1,2 m 1,6 m 2,2m 2000 kg The Tri-O-Gen ORC fits various co-generation schemes. Our engineering team is always available to discuss with you the best way to integrate the Tri-O-Gen ORC System. www.triogen.nl | info@triogen.nl | +31 (0)547 286374

PDF Image | Green Electricity from Waste Heat 165 kWe

green-electricity-from-waste-heat-165-kwe-002
