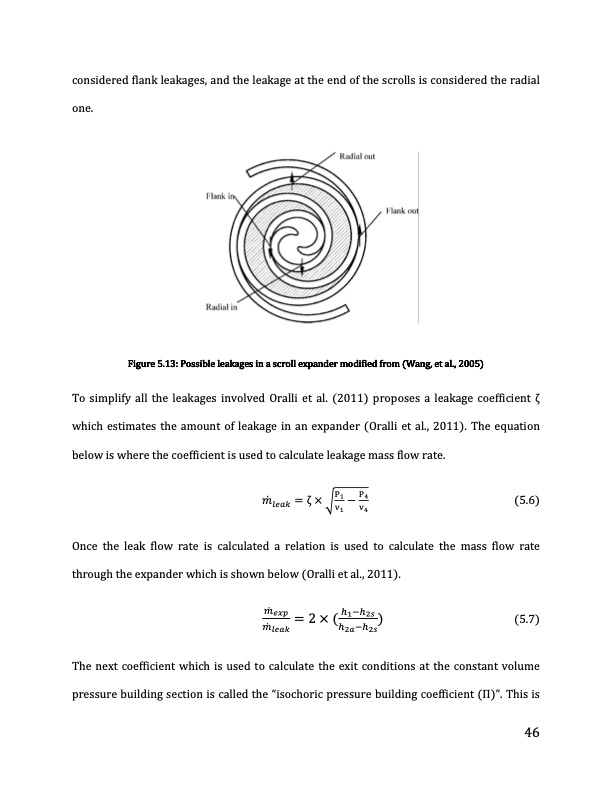

considered flank leakages, and the leakage at the end of the scrolls is considered the radial one. Figure 5.13: Possible leakages in a scroll expander modified from (Wang, et al., 2005) To simplify all the leakages involved Oralli et al. (2011) proposes a leakage coefficient ζ which estimates the amount of leakage in an expander (Oralli et al., 2011). The equation below is where the coefficient is used to calculate leakage mass flow rate. =ζ× − (5.6) Once the leak flow rate is calculated a relation is used to calculate the mass flow rate through the expander which is shown below (Oralli et al., 2011). =2×( ) (5.7) The next coefficient which is used to calculate the exit conditions at the constant volume pressure building section is called the “isochoric pressure building coefficient (Π)”. This is 46PDF Image | Exergoeconomic Analysis and Optimization of ORC
