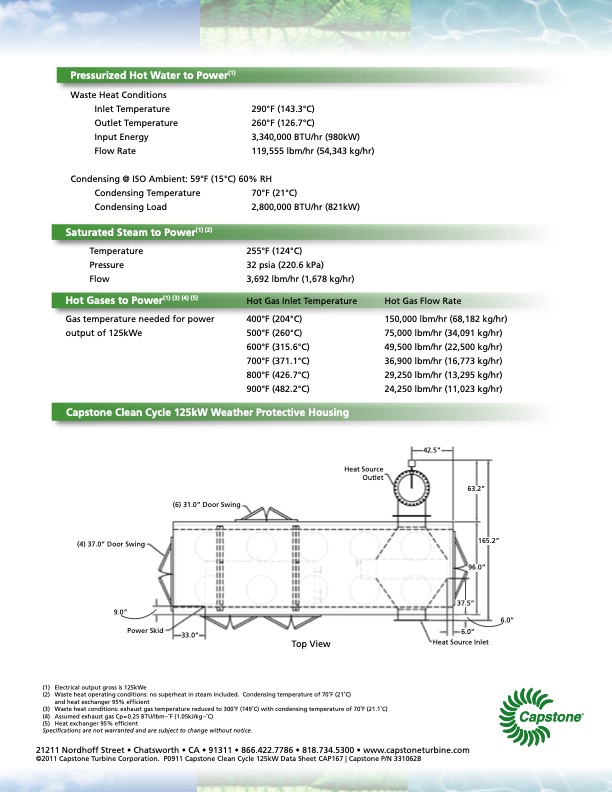

Pressurized Hot Water to Power(1) Waste Heat Conditions Inlet Temperature Outlet Temperature Input Energy Flow Rate 290°F (143.3°C) 260°F (126.7°C) 3,340,000 BTU/hr (980kW) 119,555 lbm/hr (54,343 kg/hr) Condensing @ ISO Ambient: 59°F (15°C) 60% RH Condensing Temperature Condensing Load Saturated Steam to Power(1) (2) Temperature Pressure Flow Hot Gases to Power(1) (3) (4) (5) Gas temperature needed for power output of 125kWe 70°F (21°C) 2,800,000 BTU/hr (821kW) 255°F (124°C) 32 psia (220.6 kPa) 3,692 lbm/hr (1,678 kg/hr) Hot Gas Inlet Temperature 400°F (204°C) 500°F (260°C) 600°F (315.6°C) 700°F (371.1°C) 800°F (426.7°C) 900°F (482.2°C) Hot Gas Flow Rate 150,000 lbm/hr (68,182 kg/hr) 75,000 lbm/hr (34,091 kg/hr) 49,500 lbm/hr (22,500 kg/hr) 36,900 lbm/hr (16,773 kg/hr) 29,250 lbm/hr (13,295 kg/hr) 24,250 lbm/hr (11,023 kg/hr) 42.5” Capstone Clean Cycle 125kW Weather Protective Housing (6) 31.0” Door Swing (4) 37.0” Door Swing 9.0” Power Skid 33.0” 63.2” 165.2” 96.0” 37.5” 6.0” Heat Source Outlet Top View 6.0” Heat Source Inlet (1) Electrical output gross is 125kWe (2) Waste heat operating conditions: no superheat in steam included. Condensing temperature of 70 ̊F (21 ̊C) and heat exchanger 95% efficient (3) Waste heat conditions: exhaust gas temperature reduced to 300 ̊F (149 ̊C) with condensing temperature of 70 ̊F (21.1 ̊C) (4) Assumed exhaust gas Cp = 0.25 BTU/lbm – ̊F (1.05kJ/kg – ̊C) (5) Heat exchanger 95% efficient Specifications are not warranted and are subject to change without notice. 21211 Nordhoff Street • Chatsworth • CA • 91311 • 866.422.7786 • 818.734.5300 • www.capstoneturbine.com ©2011 Capstone Turbine Corporation. P0911 Capstone Clean Cycle 125kW Data Sheet CAP167 | Capstone P/N 331062BPDF Image | Capstone Clean Cycle 125kW Waste Heat to Electricity Generator
