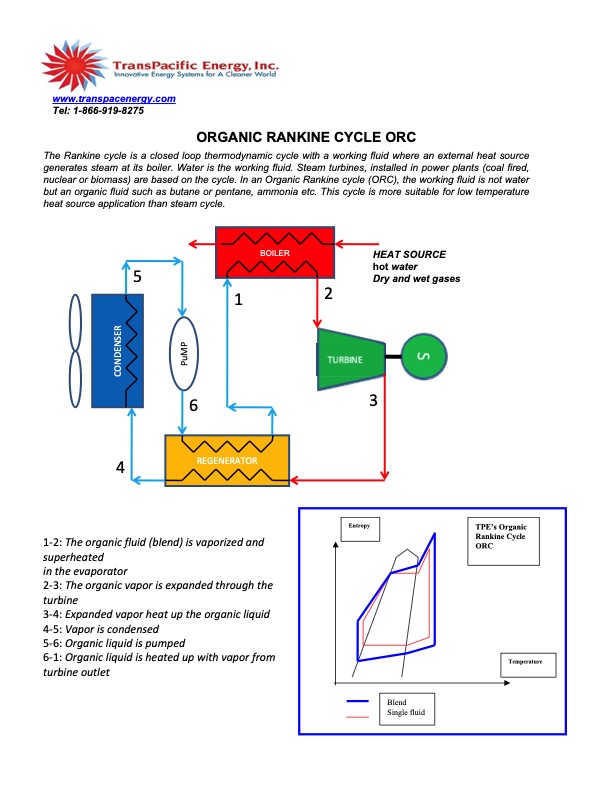

www.transpacenergy.com Tel: 1-866-919-8275 ORGANIC RANKINE CYCLE ORC The Rankine cycle is a closed loop thermodynamic cycle with a working fluid where an external heat source generates steam at its boiler. Water is the working fluid. Steam turbines, installed in power plants (coal fired, nuclear or biomass) are based on the cycle. In an Organic Rankine cycle (ORC), the working fluid is not water but an organic fluid such as butane or pentane, ammonia etc. This cycle is more suitable for low temperature heat source application than steam cycle. BOILER 5 2 HEAT SOURCE hot water Dry and wet gases 3 1 6 4 REGENERATOR Entropy TPE’s Organic Rankine Cycle ORC Blend Single fluid Temperature 1‐2: The organic fluid (blend) is vaporized and superheated in the evaporator 2‐3: The organic vapor is expanded through the turbine 3‐4: Expanded vapor heat up the organic liquid 4‐5: Vapor is condensed 5‐6: Organic liquid is pumped 6‐1: Organic liquid is heated up with vapor from turbine outlet CONDENSER PuMPPDF Image | TransPacific Energy (TPE)
