Text from PDF Page: 003

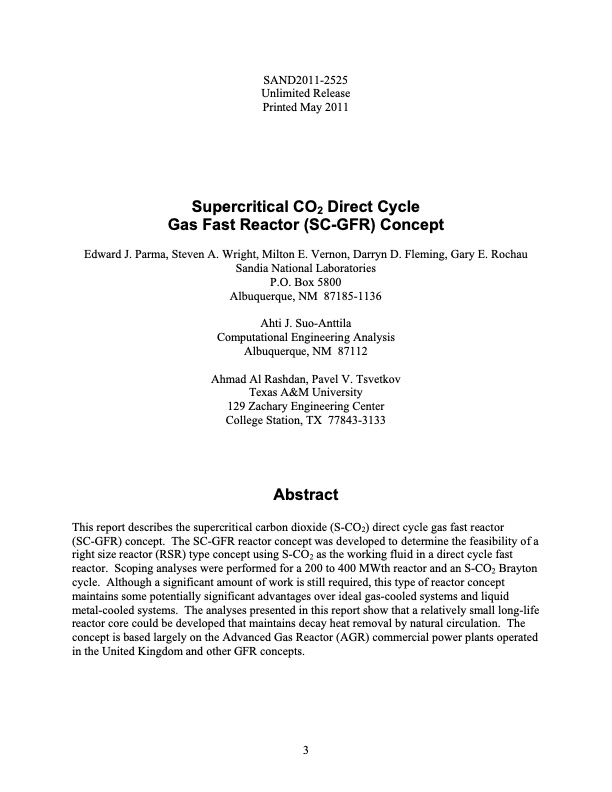

SAND2011-2525 Unlimited Release Printed May 2011 Supercritical CO2 Direct Cycle Gas Fast Reactor (SC-GFR) Concept Edward J. Parma, Steven A. Wright, Milton E. Vernon, Darryn D. Fleming, Gary E. Rochau Sandia National Laboratories P.O. Box 5800 Albuquerque, NM 87185-1136 Ahti J. Suo-Anttila Computational Engineering Analysis Albuquerque, NM 87112 Ahmad Al Rashdan, Pavel V. Tsvetkov Texas A&M University 129 Zachary Engineering Center College Station, TX 77843-3133 Abstract This report describes the supercritical carbon dioxide (S-CO2) direct cycle gas fast reactor (SC-GFR) concept. The SC-GFR reactor concept was developed to determine the feasibility of a right size reactor (RSR) type concept using S-CO2 as the working fluid in a direct cycle fast reactor. Scoping analyses were performed for a 200 to 400 MWth reactor and an S-CO2 Brayton cycle. Although a significant amount of work is still required, this type of reactor concept maintains some potentially significant advantages over ideal gas-cooled systems and liquid metal-cooled systems. The analyses presented in this report show that a relatively small long-life reactor core could be developed that maintains decay heat removal by natural circulation. The concept is based largely on the Advanced Gas Reactor (AGR) commercial power plants operated in the United Kingdom and other GFR concepts. 3PDF Image | Supercritical CO2 Direct Cycle Gas Fast Reactor (SC-GFR)
