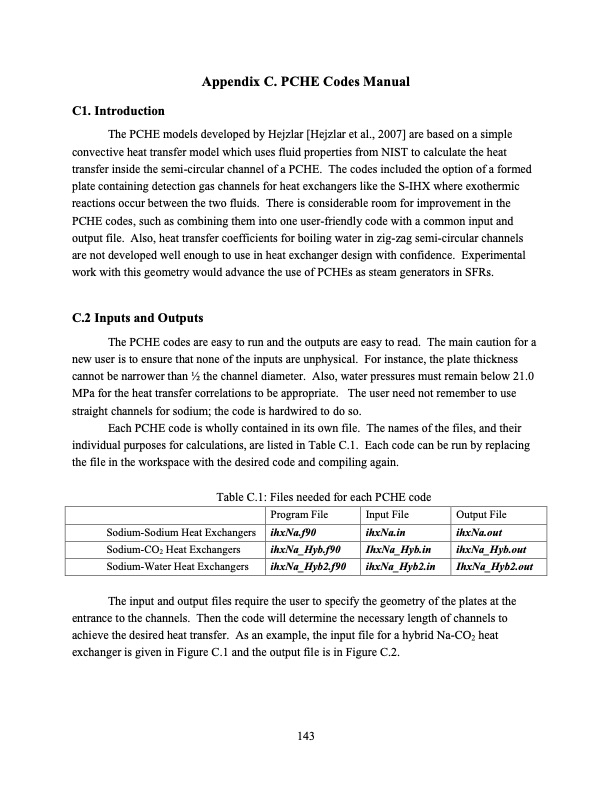

C1. Introduction Appendix C. PCHE Codes Manual The PCHE models developed by Hejzlar [Hejzlar et al., 2007] are based on a simple convective heat transfer model which uses fluid properties from NIST to calculate the heat transfer inside the semi-circular channel of a PCHE. The codes included the option of a formed plate containing detection gas channels for heat exchangers like the S-IHX where exothermic reactions occur between the two fluids. There is considerable room for improvement in the PCHE codes, such as combining them into one user-friendly code with a common input and output file. Also, heat transfer coefficients for boiling water in zig-zag semi-circular channels are not developed well enough to use in heat exchanger design with confidence. Experimental work with this geometry would advance the use of PCHEs as steam generators in SFRs. C.2 Inputs and Outputs The PCHE codes are easy to run and the outputs are easy to read. The main caution for a new user is to ensure that none of the inputs are unphysical. For instance, the plate thickness cannot be narrower than 1⁄2 the channel diameter. Also, water pressures must remain below 21.0 MPa for the heat transfer correlations to be appropriate. The user need not remember to use straight channels for sodium; the code is hardwired to do so. Each PCHE code is wholly contained in its own file. The names of the files, and their individual purposes for calculations, are listed in Table C.1. Each code can be run by replacing the file in the workspace with the desired code and compiling again. Table C.1: Files needed for each PCHE code Sodium-Sodium Heat Exchangers Sodium-CO2 Heat Exchangers Sodium-Water Heat Exchangers Program File ihxNa.f90 ihxNa_Hyb.f90 ihxNa_Hyb2.f90 Input File ihxNa.in IhxNa_Hyb.in ihxNa_Hyb2.in Output File ihxNa.out ihxNa_Hyb.out IhxNa_Hyb2.out The input and output files require the user to specify the geometry of the plates at the entrance to the channels. Then the code will determine the necessary length of channels to achieve the desired heat transfer. As an example, the input file for a hybrid Na-CO2 heat exchanger is given in Figure C.1 and the output file is in Figure C.2. 143PDF Image | Supercritical Carbon Dioxide Cycle Analysis
