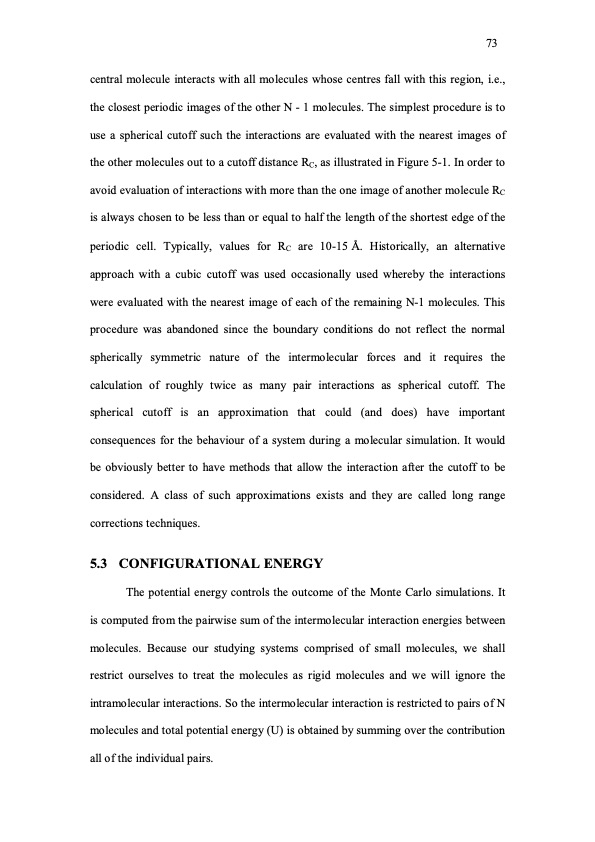

central molecule interacts with all molecules whose centres fall with this region, i.e., the closest periodic images of the other N - 1 molecules. The simplest procedure is to use a spherical cutoff such the interactions are evaluated with the nearest images of the other molecules out to a cutoff distance RC, as illustrated in Figure 5-1. In order to avoid evaluation of interactions with more than the one image of another molecule RC is always chosen to be less than or equal to half the length of the shortest edge of the periodic cell. Typically, values for RC are 10-15Å. Historically, an alternative approach with a cubic cutoff was used occasionally used whereby the interactions were evaluated with the nearest image of each of the remaining N-1 molecules. This procedure was abandoned since the boundary conditions do not reflect the normal spherically symmetric nature of the intermolecular forces and it requires the calculation of roughly twice as many pair interactions as spherical cutoff. The spherical cutoff is an approximation that could (and does) have important consequences for the behaviour of a system during a molecular simulation. It would be obviously better to have methods that allow the interaction after the cutoff to be considered. A class of such approximations exists and they are called long range corrections techniques. 5.3 CONFIGURATIONAL ENERGY The potential energy controls the outcome of the Monte Carlo simulations. It is computed from the pairwise sum of the intermolecular interaction energies between molecules. Because our studying systems comprised of small molecules, we shall restrict ourselves to treat the molecules as rigid molecules and we will ignore the intramolecular interactions. So the intermolecular interaction is restricted to pairs of N molecules and total potential energy (U) is obtained by summing over the contribution all of the individual pairs. 73PDF Image | MOLECULAR SIMULATION STUDIES IN THE SUPERCRITICAL REGION
