Text from PDF Page: 003

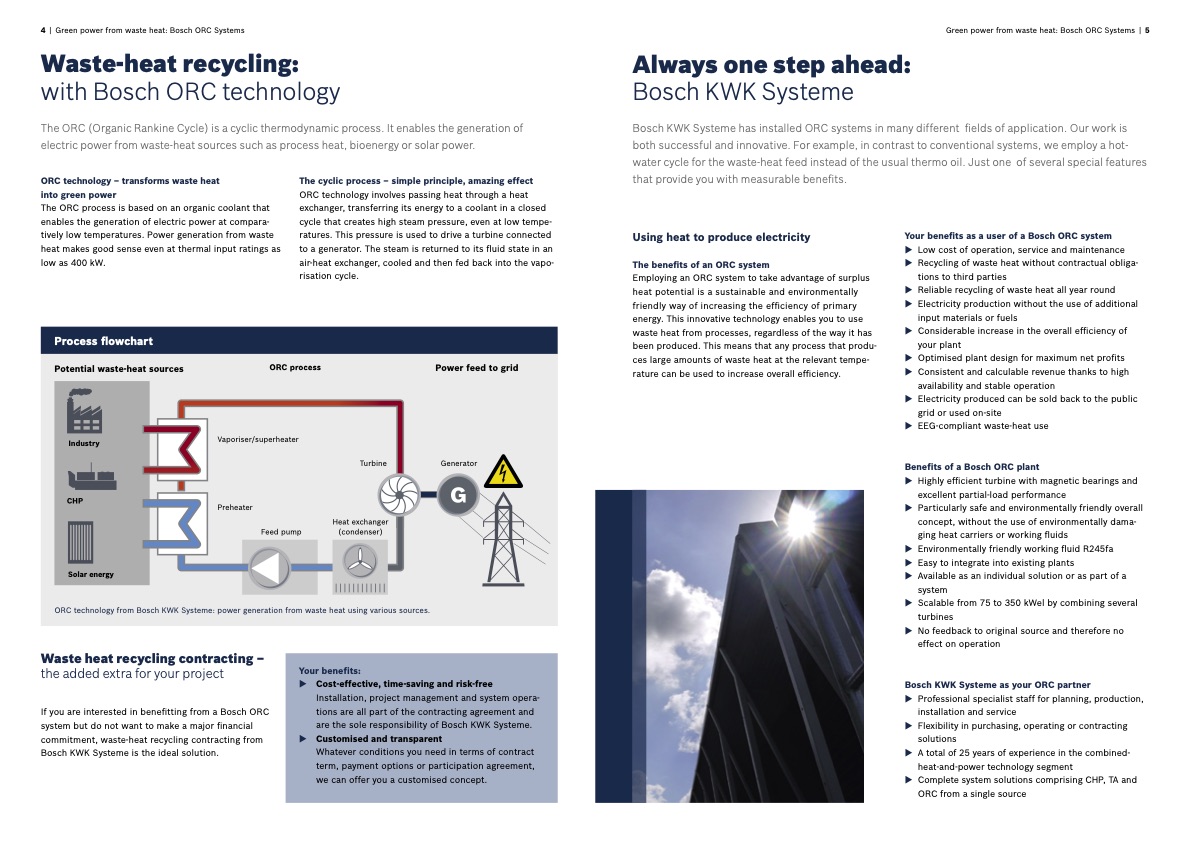

4 | Green power from waste heat: Bosch ORC Systems Green power from waste heat: Bosch ORC Systems | 5 Waste-heat recycling: with Bosch ORC technology The ORC (Organic Rankine Cycle) is a cyclic thermodynamic process. It enables the generation of electric power from waste-heat sources such as process heat, bioenergy or solar power. Always one step ahead: Bosch KWK Systeme Bosch KWK Systeme has installed ORC systems in many different fields of application. Our work is both successful and innovative. For example, in contrast to conventional systems, we employ a hot- water cycle for the waste-heat feed instead of the usual thermo oil. Just one of several special features that provide you with measurable benefits. ORC technology – transforms waste heat into green power The ORC process is based on an organic coolant that enables the generation of electric power at compara- tively low temperatures. Power generation from waste heat makes good sense even at thermal input ratings as low as 400 kW. The cyclic process – simple principle, amazing effect ORC technology involves passing heat through a heat exchanger, transferring its energy to a coolant in a closed cycle that creates high steam pressure, even at low tempe- ratures. This pressure is used to drive a turbine connected to a generator. The steam is returned to its fluid state in an air-heat exchanger, cooled and then fed back into the vapo- risation cycle. Using heat to produce electricity The benefits of an ORC system Employing an ORC system to take advantage of surplus heat potential is a sustainable and environmentally friendly way of increasing the efficiency of primary energy. This innovative technology enables you to use waste heat from processes, regardless of the way it has been produced. This means that any process that produ- ces large amounts of waste heat at the relevant tempe- rature can be used to increase overall efficiency. Your benefits as a user of a Bosch ORC system Low cost of operation, service and maintenance Recycling of waste heat without contractual obliga- tions to third parties Reliable recycling of waste heat all year round Electricity production without the use of additional input materials or fuels Considerable increase in the overall efficiency of your plant Optimised plant design for maximum net profits Consistent and calculable revenue thanks to high availability and stable operation Electricity produced can be sold back to the public grid or used on-site EEG-compliant waste-heat use Benefits of a Bosch ORC plant Highly efficient turbine with magnetic bearings and excellent partial-load performance Particularly safe and environmentally friendly overall concept, without the use of environmentally dama- ging heat carriers or working fluids Environmentally friendly working fluid R245fa Easy to integrate into existing plants Available as an individual solution or as part of a system Scalable from 75 to 350 kWel by combining several turbines No feedback to original source and therefore no effect on operation Bosch KWK Systeme as your ORC partner Professional specialist staff for planning, production, installation and service Flexibility in purchasing, operating or contracting solutions A total of 25 years of experience in the combined- heat-and-power technology segment Complete system solutions comprising CHP, TA and ORC from a single source Process flowchart Potential waste-heat sources ORC process Power feed to grid Industry CHP Solar energy Vaporiser/superheater Preheater Turbine Heat exchanger Generator Feed pump (condenser) ORC technology from Bosch KWK Systeme: power generation from waste heat using various sources. Waste heat recycling contracting – the added extra for your project If you are interested in benefitting from a Bosch ORC system but do not want to make a major financial commitment, waste-heat recycling contracting from Bosch KWK Systeme is the ideal solution. Your benefits: Cost-effective, time-saving and risk-free Installation, project management and system opera- tions are all part of the contracting agreement and are the sole responsibility of Bosch KWK Systeme. Customised and transparent Whatever conditions you need in terms of contract term, payment options or participation agreement, we can offer you a customised concept.PDF Image | Green power from waste heat: Bosch ORC Systems
