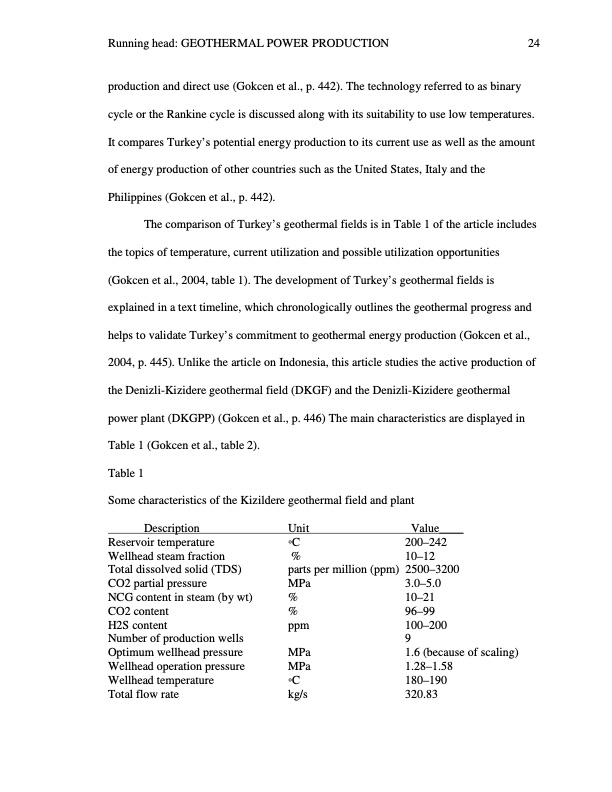

Running head: GEOTHERMAL POWER PRODUCTION 24 production and direct use (Gokcen et al., p. 442). The technology referred to as binary cycle or the Rankine cycle is discussed along with its suitability to use low temperatures. It compares Turkey’s potential energy production to its current use as well as the amount of energy production of other countries such as the United States, Italy and the Philippines (Gokcen et al., p. 442). The comparison of Turkey’s geothermal fields is in Table 1 of the article includes the topics of temperature, current utilization and possible utilization opportunities (Gokcen et al., 2004, table 1). The development of Turkey’s geothermal fields is explained in a text timeline, which chronologically outlines the geothermal progress and helps to validate Turkey’s commitment to geothermal energy production (Gokcen et al., 2004, p. 445). Unlike the article on Indonesia, this article studies the active production of the Denizli-Kizidere geothermal field (DKGF) and the Denizli-Kizidere geothermal power plant (DKGPP) (Gokcen et al., p. 446) The main characteristics are displayed in Table 1 (Gokcen et al., table 2). Table 1 Some characteristics of the Kizildere Description Reservoir temperature Wellhead steam fraction Total dissolved solid (TDS) CO2 partial pressure MPa NCG content in steam (by wt) % CO2 content % H2S content ppm Number of production wells Optimum wellhead pressure MPa Wellhead operation pressure MPa Wellhead temperature ◦C Total flow rate kg/s geothermal field and plant Unit ◦C V alue____ 200–242 10–12 % parts per million (ppm) 2500–3200 3.0–5.0 10–21 96–99 100–200 9 1.6 (because of scaling) 1.28–1.58 180–190 320.83PDF Image | GEOTHERMAL POWER PRODUCTION Emmonak Alaska
