PDF Publication Title:

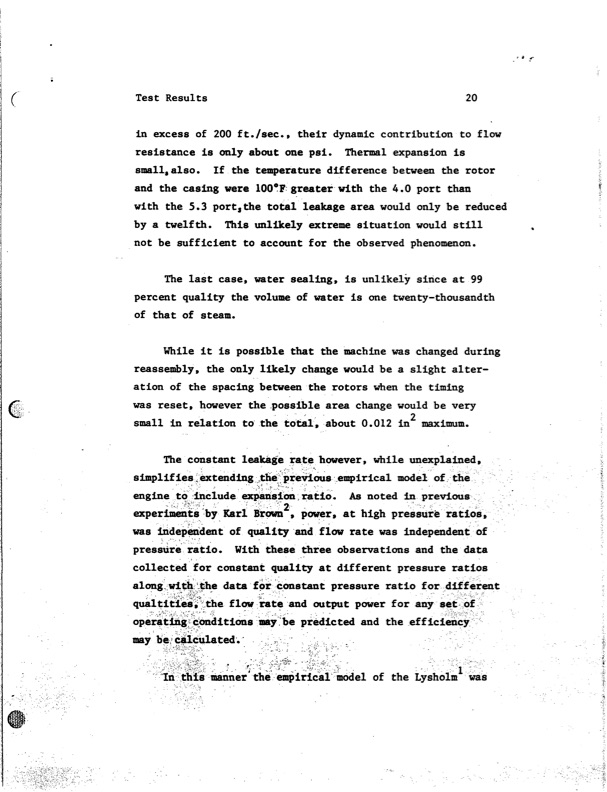

Text from PDF Page: 025
Test Results 20 in excess of 200 ft./sec., their dynamic contribution to flow resistance is only about one psi. Thermal expansion is smal1,also. If the temperature difference between the rotor and the casing were 100oFgreater with the 4.0 port than with the 5.3 port,the t o t a l leakage area would only be reduced by a twelfth. This unlikely extreme situation would still not be sufficient to account for the observed phenomenon. The last case, water sealing, is unlikely since at 99 percent quality the volume of water is one twenty-thousandth of that of steam. While it is possible that the machine was changed during reassembly, the only likely change would be a slight alter- ation of the spacing between the rotors when the timing was reset, however the possible area change would be very small in relation to the total, about 0.012 in2 maximum. The constant leakage rate however, while unexplained, s empirical model: of ent of quality and flow rate was independent of io. With these three observations and the data pressure ratio for and output power for any delof theLy .PDF Image | Expansion Ratio of a Lysholm Screw Expander
PDF Search Title:
Expansion Ratio of a Lysholm Screw ExpanderOriginal File Name Searched:
6771079.pdfDIY PDF Search: Google It | Yahoo | Bing
