PDF Publication Title:
Text from PDF Page: 003

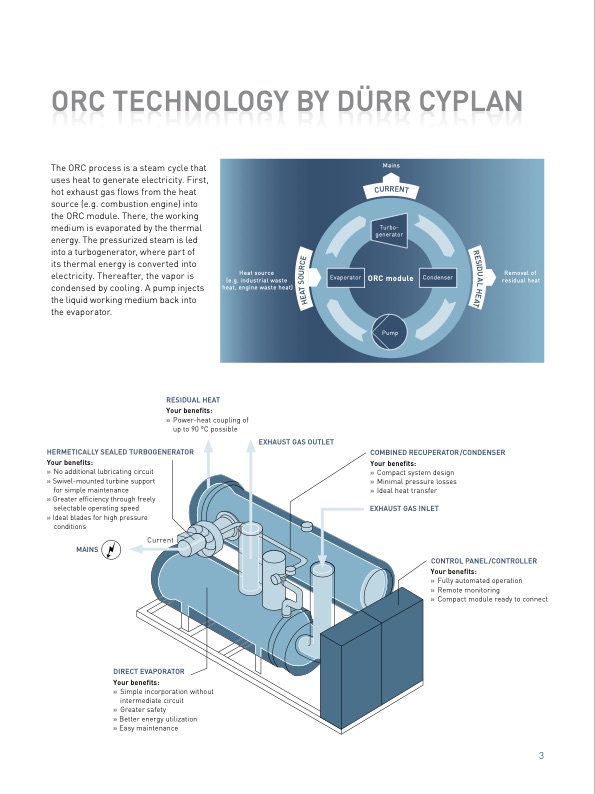

orc tEcHnoloGy By DÜrr cyPlan Heat source (e.g. industrial waste heat, engine waste heat) Evaporator Mains Turbo- generator ORC module Pump Condenser Removal of residual heat The ORC process is a steam cycle that uses heat to generate electricity. First, hot exhaust gas flows from the heat source (e.g. combustion engine) into the ORC module. There, the working medium is evaporated by the thermal energy. The pressurized steam is led into a turbogenerator, where part of its thermal energy is converted into electricity. Thereafter, the vapor is condensed by cooling. A pump injects the liquid working medium back into the evaporator. RESIDUAL HEAT Your benefits: » Power-heat coupling of up to 90 °C possible HERMETICALLY SEALED TURBOGENERATOR Your benefits: » No additional lubricating circuit » Swivel-mounted turbine support for simple maintenance » Greater efficiency through freely selectable operating speed » Ideal blades for high pressure EXHAUST GAS OUTLET conditions MAINS Current COMBINED RECUPERATOR/CONDENSER Your benefits: » Compact system design » Minimal pressure losses » Ideal heat transfer EXHAUST GAS INLET CONTROL PANEL/CONTROLLER Your benefits: » Fully automated operation » Remote monitoring » Compact module ready to connect DIRECT EVAPORATOR Your benefits: » Simple incorporation without intermediate circuit » Greater safety » Better energy utilization » Easy maintenance 3 NALPYCRRÜDYBYGOLONHCETCRO R U C R E N T R E E S C I D R U U O S A L T A H E E H A TPDF Image | Chena Hot Springs Fairbanks
PDF Search Title:
Chena Hot Springs FairbanksOriginal File Name Searched:
120831_Durr_Cyplan_ORC_en.pdfDIY PDF Search: Google It | Yahoo | Bing
