PDF Publication Title:

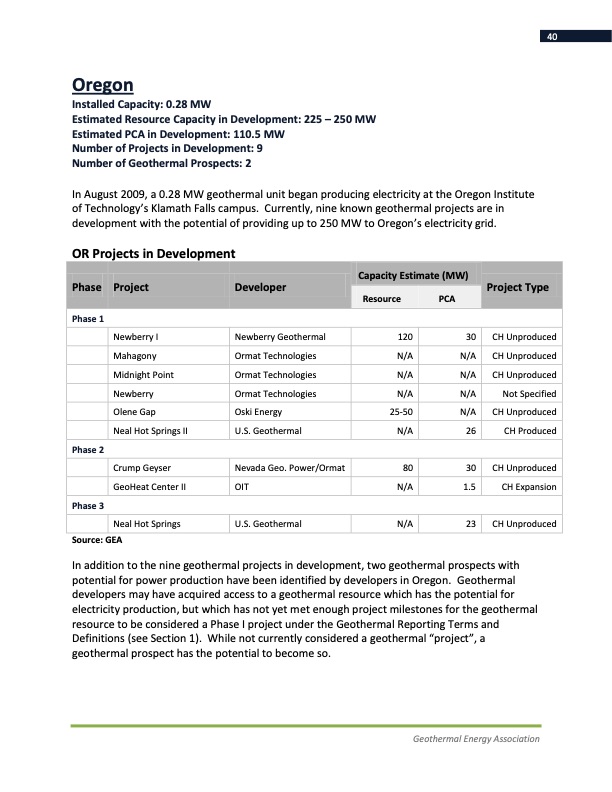

Text from PDF Page: 040
Oregon Installed Capacity: 0.28 MW Estimated Resource Capacity in Development: 225 – 250 MW Estimated PCA in Development: 110.5 MW Number of Projects in Development: 9 Number of Geothermal Prospects: 2 In August 2009, a 0.28 MW geothermal unit began producing electricity at the Oregon Institute of Technology’s Klamath Falls campus. Currently, nine known geothermal projects are in development with the potential of providing up to 250 MW to Oregon’s electricity grid. OR Projects in Development Phase Capacity Estimate (MW) Project Developer Project Type Resource PCA Phase 1 Newberry I Mahagony Midnight Point Newberry Olene Gap Neal Hot Springs II Crump Geyser GeoHeat Center II Neal Hot Springs Newberry Geothermal 120 Ormat Technologies N/A Ormat Technologies N/A Ormat Technologies N/A Oski Energy 25-50 U.S. Geothermal N/A Nevada Geo. Power/Ormat 80 OIT N/A 30 CH Unproduced N/A CH Unproduced N/A CH Unproduced N/A Not Specified N/A CH Unproduced 26 CH Produced 30 CH Unproduced 1.5 CH Expansion Phase 2 Phase 3 Source: GEA U.S. Geothermal N/A 23 CH Unproduced In addition to the nine geothermal projects in development, two geothermal prospects with potential for power production have been identified by developers in Oregon. Geothermal developers may have acquired access to a geothermal resource which has the potential for electricity production, but which has not yet met enough project milestones for the geothermal resource to be considered a Phase I project under the Geothermal Reporting Terms and Definitions (see Section 1). While not currently considered a geothermal “project”, a geothermal prospect has the potential to become so. Geothermal Energy Association 40PDF Image | Annual U.S. Geothermal Power Production 2011
PDF Search Title:
Annual U.S. Geothermal Power Production 2011Original File Name Searched:
April2011AnnualUSGeothermalPowerProductionandDevelopmentReport.pdfDIY PDF Search: Google It | Yahoo | Bing
