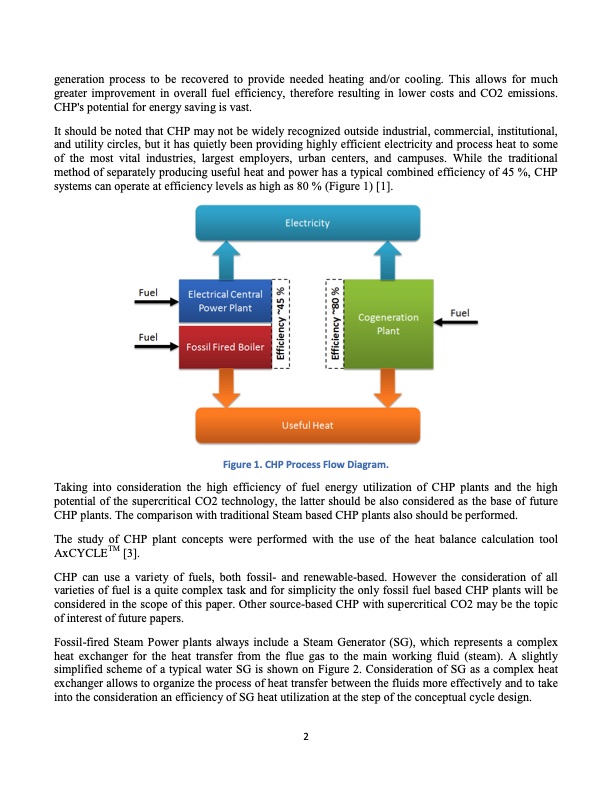

generation process to be recovered to provide needed heating and/or cooling. This allows for much greater improvement in overall fuel efficiency, therefore resulting in lower costs and CO2 emissions. CHP's potential for energy saving is vast. It should be noted that CHP may not be widely recognized outside industrial, commercial, institutional, and utility circles, but it has quietly been providing highly efficient electricity and process heat to some of the most vital industries, largest employers, urban centers, and campuses. While the traditional method of separately producing useful heat and power has a typical combined efficiency of 45 %, CHP systems can operate at efficiency levels as high as 80 % (Figure 1) [1]. Figure 1. CHP Process Flow Diagram. Taking into consideration the high efficiency of fuel energy utilization of CHP plants and the high potential of the supercritical CO2 technology, the latter should be also considered as the base of future CHP plants. The comparison with traditional Steam based CHP plants also should be performed. The study of CHP plant concepts were performed with the use of the heat balance calculation tool AxCYCLETM [3]. CHP can use a variety of fuels, both fossil- and renewable-based. However the consideration of all varieties of fuel is a quite complex task and for simplicity the only fossil fuel based CHP plants will be considered in the scope of this paper. Other source-based CHP with supercritical CO2 may be the topic of interest of future papers. Fossil-fired Steam Power plants always include a Steam Generator (SG), which represents a complex heat exchanger for the heat transfer from the flue gas to the main working fluid (steam). A slightly simplified scheme of a typical water SG is shown on Figure 2. Consideration of SG as a complex heat exchanger allows to organize the process of heat transfer between the fluids more effectively and to take into the consideration an efficiency of SG heat utilization at the step of the conceptual cycle design. 2PDF Image | Study of a Supercritical CO2 Power Cycle Application in a Cogeneration Power Plant
