PDF Publication Title:
Text from PDF Page: 151

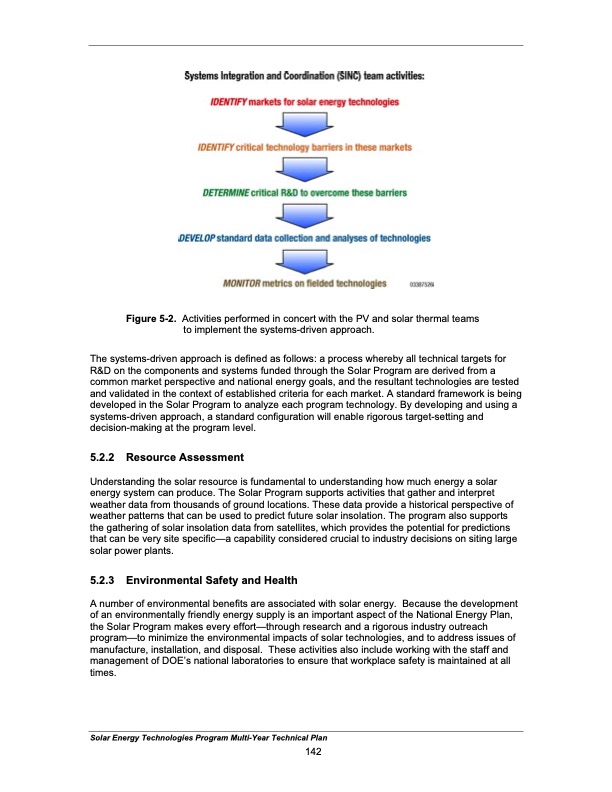

Figure 5-2. Activities performed in concert with the PV and solar thermal teams to implement the systems-driven approach. The systems-driven approach is defined as follows: a process whereby all technical targets for R&D on the components and systems funded through the Solar Program are derived from a common market perspective and national energy goals, and the resultant technologies are tested and validated in the context of established criteria for each market. A standard framework is being developed in the Solar Program to analyze each program technology. By developing and using a systems-driven approach, a standard configuration will enable rigorous target-setting and decision-making at the program level. 5.2.2 Resource Assessment Understanding the solar resource is fundamental to understanding how much energy a solar energy system can produce. The Solar Program supports activities that gather and interpret weather data from thousands of ground locations. These data provide a historical perspective of weather patterns that can be used to predict future solar insolation. The program also supports the gathering of solar insolation data from satellites, which provides the potential for predictions that can be very site specific—a capability considered crucial to industry decisions on siting large solar power plants. 5.2.3 Environmental Safety and Health A number of environmental benefits are associated with solar energy. Because the development of an environmentally friendly energy supply is an important aspect of the National Energy Plan, the Solar Program makes every effort—through research and a rigorous industry outreach program—to minimize the environmental impacts of solar technologies, and to address issues of manufacture, installation, and disposal. These activities also include working with the staff and management of DOE’s national laboratories to ensure that workplace safety is maintained at all times. Solar Energy Technologies Program Multi-Year Technical Plan 142PDF Image | Solar Energy Technologies Program
PDF Search Title:
Solar Energy Technologies ProgramOriginal File Name Searched:
33875.pdfDIY PDF Search: Google It | Yahoo | Bing
