PDF Publication Title:

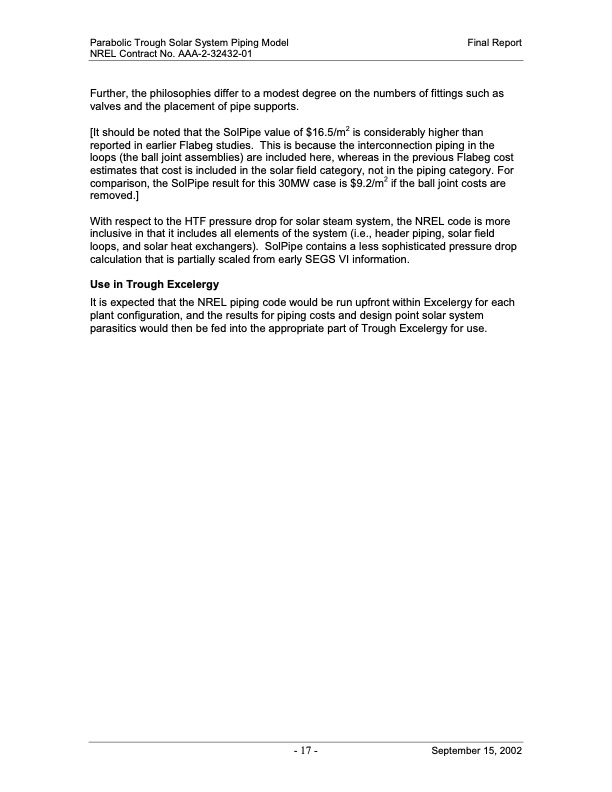

Text from PDF Page: 022
Parabolic Trough Solar System Piping Model Final Report NREL Contract No. AAA-2-32432-01 Further, the philosophies differ to a modest degree on the numbers of fittings such as valves and the placement of pipe supports. [It should be noted that the SolPipe value of $16.5/m2 is considerably higher than reported in earlier Flabeg studies. This is because the interconnection piping in the loops (the ball joint assemblies) are included here, whereas in the previous Flabeg cost estimates that cost is included in the solar field category, not in the piping category. For comparison, the SolPipe result for this 30MW case is $9.2/m2 if the ball joint costs are removed.] With respect to the HTF pressure drop for solar steam system, the NREL code is more inclusive in that it includes all elements of the system (i.e., header piping, solar field loops, and solar heat exchangers). SolPipe contains a less sophisticated pressure drop calculation that is partially scaled from early SEGS VI information. Use in Trough Excelergy It is expected that the NREL piping code would be run upfront within Excelergy for each plant configuration, and the results for piping costs and design point solar system parasitics would then be fed into the appropriate part of Trough Excelergy for use. - 17 - September 15, 2002PDF Image | Parabolic Trough Solar System Piping Model
