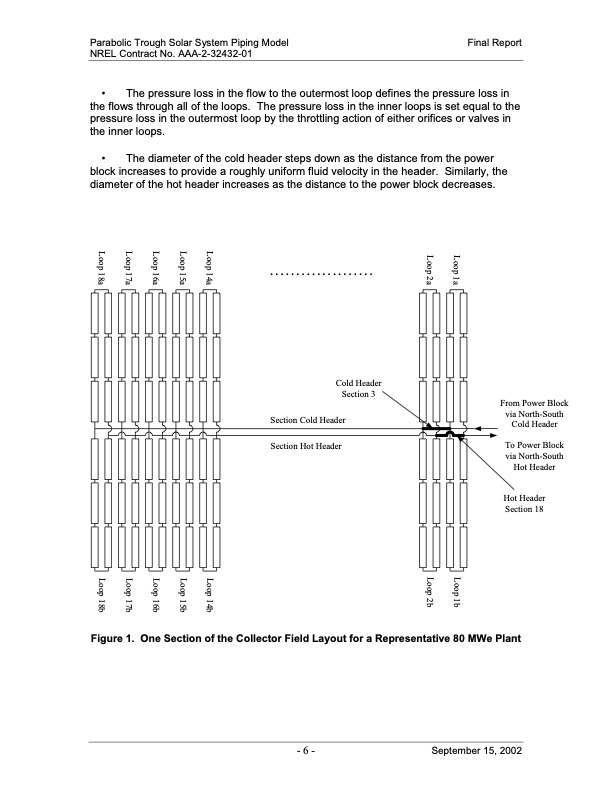

Parabolic Trough Solar System Piping Model Final Report NREL Contract No. AAA-2-32432-01 • The pressure loss in the flow to the outermost loop defines the pressure loss in the flows through all of the loops. The pressure loss in the inner loops is set equal to the pressure loss in the outermost loop by the throttling action of either orifices or valves in the inner loops. • The diameter of the cold header steps down as the distance from the power block increases to provide a roughly uniform fluid velocity in the header. Similarly, the diameter of the hot header increases as the distance to the power block decreases. .................... Cold Header Section 3 Section Cold Header Section Hot Header From Power Block via North-South Cold Header To Power Block via North-South Hot Header Hot Header Section 18 Figure 1. One Section of the Collector Field Layout for a Representative 80 MWe Plant - 6 - September 15, 2002 Loop 1a Loop 2a Loop 1b Loop 2b Loop 14a Loop 15a Loop 16a Loop 17a Loop 14b Loop 15b Loop 16b Loop 17b Loop 18a Loop 18bPDF Image | Parabolic Trough Solar System Piping Model
