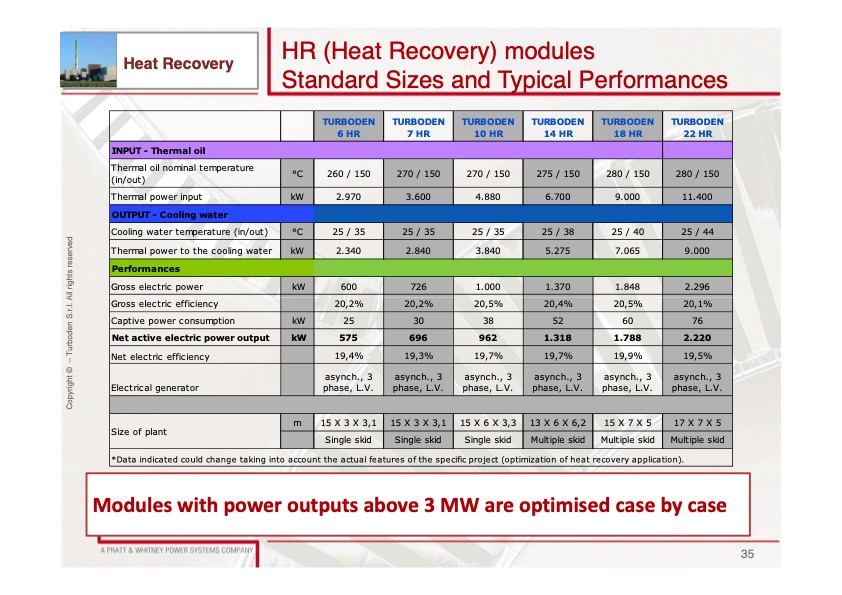

Heat Recovery HR (Heat Recovery) modules Standard Sizes and Typical Performances INPUT - Thermal oil Thermal oil nominal temperature (in/out) °C 260 / 150 kW 2.970 270 / 150 3.600 270 / 150 4.880 275 / 150 6.700 280 / 150 9.000 280 / 150 11.400 Thermal power input OUTPUT - Cooling water Cooling water temperature (in/out) °C 25 / 35 kW 2.340 25 / 35 2.840 25 / 35 3.840 25 / 38 5.275 25 / 40 7.065 25 / 44 9.000 Thermal power to the cooling water Performances Gross electric power Gross electric efficiency kW 600 20,2% 726 20,2% 30 696 19,3% 1.000 20,5% 38 962 19,7% 1.370 20,4% 52 1.318 19,7% 1.848 20,5% 60 1.788 19,9% 2.296 20,1% 76 2.220 19,5% Captive power consumption Net active electric power output kW 25 kW 575 Net electric efficiency Electrical generator 19,4% TURBODEN TURBODEN TURBODEN TURBODEN TURBODEN TURBODEN 6HR 7HR 10HR 14HR 18HR 22HR asynch., 3 phase, L.V. asynch., 3 phase, L.V. asynch., 3 phase, L.V. asynch., 3 phase, L.V. asynch., 3 phase, L.V. asynch., 3 phase, L.V. m 15 X 3 X 3,1 Single skid 15 X 3 X 3,1 Single skid 15 X 6 X 3,3 Single skid 13 X 6 X 6,2 Multiple skid 15 X 7 X 5 Multiple skid 17 X 7 X 5 Multiple skid Size of plant *Data indicated could change taking into account the actual features of the specific project (optimization of heat recovery application). Modules with power outputs above 3 MW are optimised case by case 35 Copyright © – Turboden S.r.l. All rights reservedPDF Image | Modern ORC systems for sustainable use of wood
