PDF Publication Title:

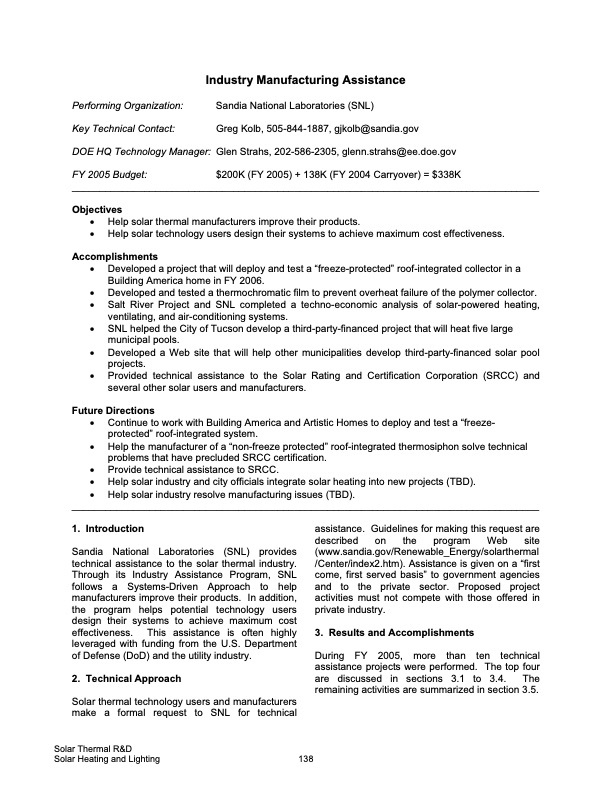

Text from PDF Page: 144
Performing Organization: Key Technical Contact: DOE HQ Technology Manager: FY 2005 Budget: Sandia National Laboratories (SNL) Greg Kolb, 505-844-1887, gjkolb@sandia.gov Glen Strahs, 202-586-2305, glenn.strahs@ee.doe.gov $200K (FY 2005) + 138K (FY 2004 Carryover) = $338K Industry Manufacturing Assistance ____________________________________________________________________________________ Objectives • Help solar thermal manufacturers improve their products. • Help solar technology users design their systems to achieve maximum cost effectiveness. Accomplishments • Developed a project that will deploy and test a “freeze-protected” roof-integrated collector in a Building America home in FY 2006. • Developed and tested a thermochromatic film to prevent overheat failure of the polymer collector. • Salt River Project and SNL completed a techno-economic analysis of solar-powered heating, ventilating, and air-conditioning systems. • SNL helped the City of Tucson develop a third-party-financed project that will heat five large municipal pools. • Developed a Web site that will help other municipalities develop third-party-financed solar pool projects. • Provided technical assistance to the Solar Rating and Certification Corporation (SRCC) and several other solar users and manufacturers. Future Directions • Continue to work with Building America and Artistic Homes to deploy and test a “freeze- protected” roof-integrated system. • Help the manufacturer of a “non-freeze protected” roof-integrated thermosiphon solve technical problems that have precluded SRCC certification. • Provide technical assistance to SRCC. • Help solar industry and city officials integrate solar heating into new projects (TBD). • Help solar industry resolve manufacturing issues (TBD). ____________________________________________________________________________________ 1. Introduction Sandia National Laboratories (SNL) provides technical assistance to the solar thermal industry. Through its Industry Assistance Program, SNL follows a Systems-Driven Approach to help manufacturers improve their products. In addition, the program helps potential technology users design their systems to achieve maximum cost effectiveness. This assistance is often highly leveraged with funding from the U.S. Department of Defense (DoD) and the utility industry. 2. Technical Approach Solar thermal technology users and manufacturers make a formal request to SNL for technical Solar Thermal R&D Solar Heating and Lighting assistance. Guidelines for making this request are described on the program Web site (www.sandia.gov/Renewable_Energy/solarthermal /Center/index2.htm). Assistance is given on a “first come, first served basis” to government agencies and to the private sector. Proposed project activities must not compete with those offered in private industry. 3. Results and Accomplishments During FY 2005, more than ten technical assistance projects were performed. The top four are discussed in sections 3.1 to 3.4. The remaining activities are summarized in section 3.5. 138PDF Image | DOE Solar Energy Technologies Program
