PDF Publication Title:
Text from PDF Page: 216

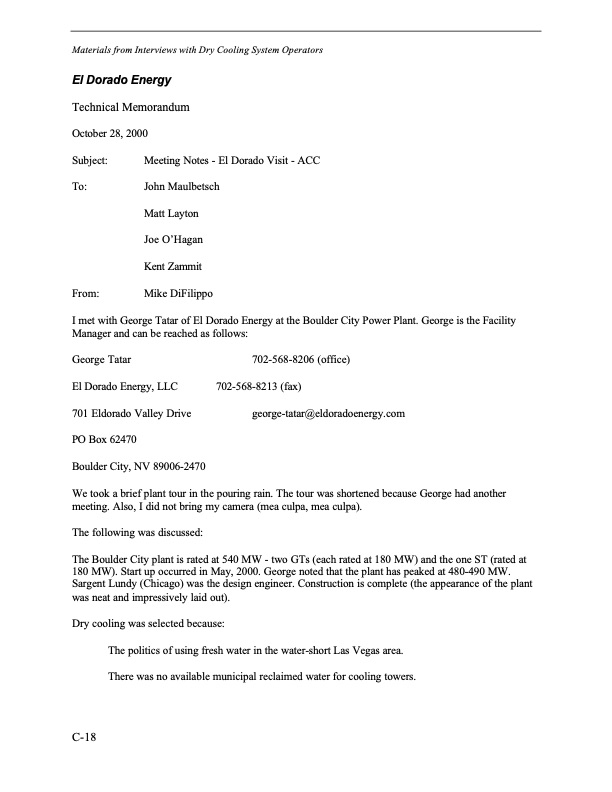

Materials from Interviews with Dry Cooling System Operators El Dorado Energy Technical Memorandum October 28, 2000 Subject: To: From: Meeting Notes - El Dorado Visit - ACC John Maulbetsch Matt Layton Joe O’Hagan Kent Zammit Mike DiFilippo I met with George Tatar of El Dorado Energy at the Boulder City Power Plant. George is the Facility Manager and can be reached as follows: George Tatar El Dorado Energy, LLC 701 Eldorado Valley Drive PO Box 62470 Boulder City, NV 89006-2470 702-568-8206 (office) 702-568-8213 (fax) george-tatar@eldoradoenergy.com We took a brief plant tour in the pouring rain. The tour was shortened because George had another meeting. Also, I did not bring my camera (mea culpa, mea culpa). The following was discussed: The Boulder City plant is rated at 540 MW - two GTs (each rated at 180 MW) and the one ST (rated at 180 MW). Start up occurred in May, 2000. George noted that the plant has peaked at 480-490 MW. Sargent Lundy (Chicago) was the design engineer. Construction is complete (the appearance of the plant was neat and impressively laid out). Dry cooling was selected because: The politics of using fresh water in the water-short Las Vegas area. There was no available municipal reclaimed water for cooling towers. C-18PDF Image | Comparison of Alternate Cooling Technologies for California Power Plants Economic, Environmental and Other Tradeoffs
PDF Search Title:
Comparison of Alternate Cooling Technologies for California Power Plants Economic, Environmental and Other TradeoffsOriginal File Name Searched:
2002_07_09_500_02_079F.PDFDIY PDF Search: Google It | Yahoo | Bing
