Text from PDF Page: 145

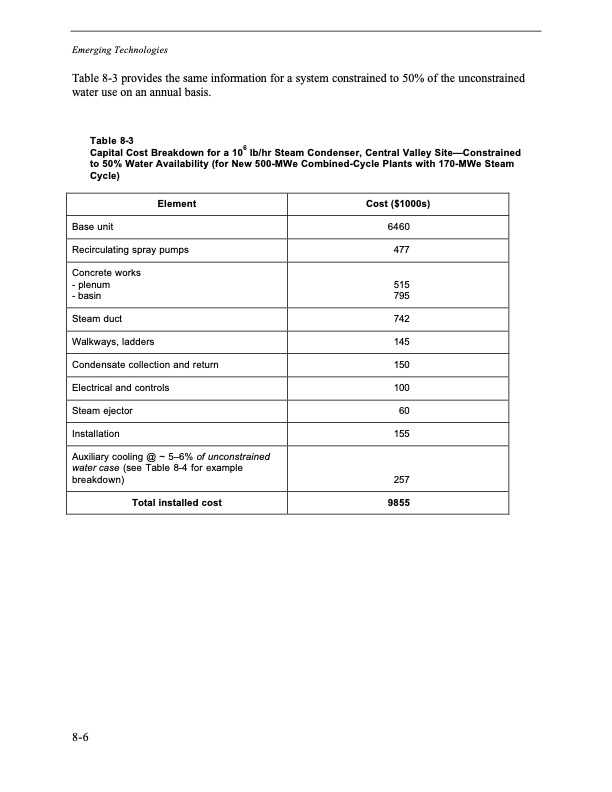

Emerging Technologies Table 8-3 provides the same information for a system constrained to 50% of the unconstrained water use on an annual basis. Table 8-3 6 Capital Cost Breakdown for a 10 to 50% Water Availability (for New 500-MWe Combined-Cycle Plants with 170-MWe Steam Cycle) lb/hr Steam Condenser, Central Valley Site—Constrained Element Base unit Recirculating spray pumps Steam duct Walkways, ladders Condensate collection and return Electrical and controls Steam ejector Installation Total installed cost Cost ($1000s) 6460 477 742 145 150 100 60 155 9855 Concrete works - plenum - basin 515 795 Auxiliary cooling @ ~ 5–6% of unconstrained water case (see Table 8-4 for example breakdown) 257 8-6PDF Image | Comparison of Alternate Cooling Technologies for California Power Plants Economic, Environmental and Other Tradeoffs
PDF Search Title:
Comparison of Alternate Cooling Technologies for California Power Plants Economic, Environmental and Other TradeoffsOriginal File Name Searched:
2002_07_09_500_02_079F.PDFDIY PDF Search: Google It | Yahoo | Bing
