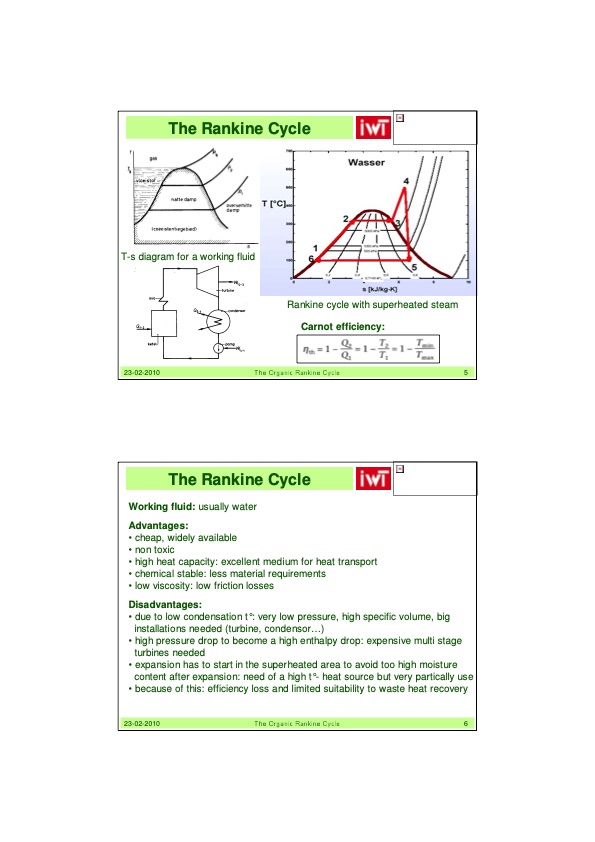

The Rankine Cycle T-s diagram for a working flui Rankine cycle with superheated steam Carnot efficiency: 23-02-2010 5 d The Rankine Cycle Working fluid: usually water Advantages: • cheap, widely available • non toxic • high heat capacity: excellent medium for heat transport • chemical stable: less material requirements • low viscosity: low friction losses Disadvantages: • due to low condensation t°: very low pressure, high specific volume, big installations needed (turbine, condensor...) • high pressure drop to become a high enthalpy drop: expensive multi stage turbines needed • expansion has to start in the superheated area to avoid too high moisture content after expansion: need of a high t°- heat source but very partically use • because of this: efficiency loss and limited suitability to waste heat recovery 23-02-2010 6 elcyC eniknaR cinagrO ehT elcyC eniknaR cinagrO ehTPDF Image | CHP: Technology Update The Organic Rankine Cycle (ORC)
