PDF Publication Title:
Text from PDF Page: 115

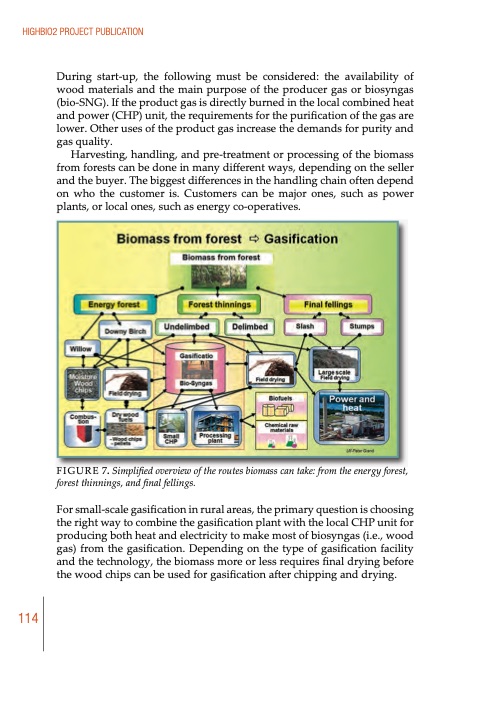

HIGHBIO2 PROJECT PUBLICATION During start-up, the following must be considered: the availability of wood materials and the main purpose of the producer gas or biosyngas (bio-SNG). If the product gas is directly burned in the local combined heat and power (CHP) unit, the requirements for the purification of the gas are lower. Other uses of the product gas increase the demands for purity and gas quality. Harvesting, handling, and pre-treatment or processing of the biomass from forests can be done in many different ways, depending on the seller and the buyer. The biggest differences in the handling chain often depend on who the customer is. Customers can be major ones, such as power plants, or local ones, such as energy co-operatives. FIGURE 7. Simplified overview of the routes biomass can take: from the energy forest, forest thinnings, and final fellings. For small-scale gasification in rural areas, the primary question is choosing the right way to combine the gasification plant with the local CHP unit for producing both heat and electricity to make most of biosyngas (i.e., wood gas) from the gasification. Depending on the type of gasification facility and the technology, the biomass more or less requires final drying before the wood chips can be used for gasification after chipping and drying. 114PDF Image | BIOMASS TO ENERGY AND CHEMICALS HighBio2 Project Publication
PDF Search Title:
BIOMASS TO ENERGY AND CHEMICALS HighBio2 Project PublicationOriginal File Name Searched:
978_951_39_5455_0.pdfDIY PDF Search: Google It | Yahoo | Bing
