PDF Publication Title:
Text from PDF Page: 234

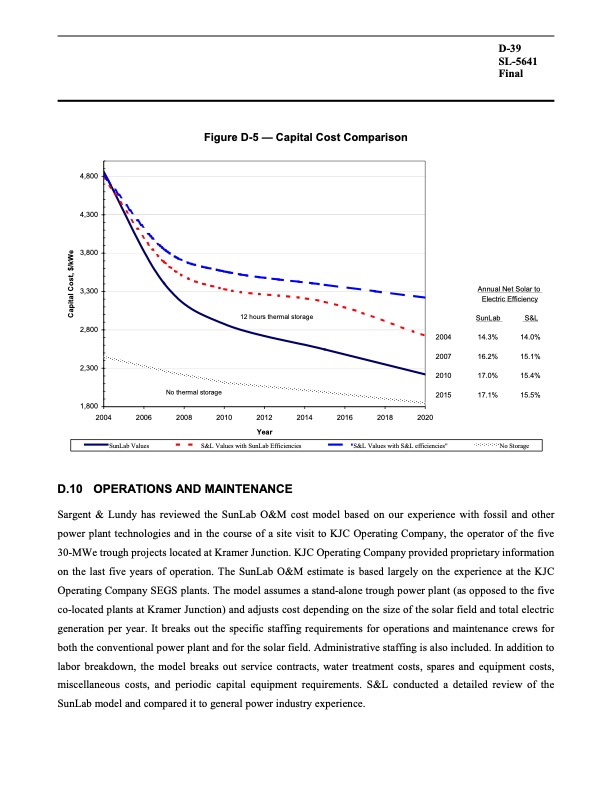

Figure D-5 — Capital Cost Comparison D-39 SL-5641 Final 12 hours thermal storage No thermal storage 4,800 4,300 3,800 3,300 2,800 2,300 1,800 2004 2006 SunLab Values Annual Net Solar to Electric Efficiency SunLab 2004 14.3% 2007 16.2% 2010 17.0% 2015 17.1% S&L 14.0% 15.1% 15.4% 15.5% D.10 OPERATIONS AND MAINTENANCE 2008 2010 2012 2014 Year S&L Values with SunLab Efficiencies 2016 2018 2020 S&L Values with S&L efficiencies" No Storage Sargent & Lundy has reviewed the SunLab O&M cost model based on our experience with fossil and other power plant technologies and in the course of a site visit to KJC Operating Company, the operator of the five 30-MWe trough projects located at Kramer Junction. KJC Operating Company provided proprietary information on the last five years of operation. The SunLab O&M estimate is based largely on the experience at the KJC Operating Company SEGS plants. The model assumes a stand-alone trough power plant (as opposed to the five co-located plants at Kramer Junction) and adjusts cost depending on the size of the solar field and total electric generation per year. It breaks out the specific staffing requirements for operations and maintenance crews for both the conventional power plant and for the solar field. Administrative staffing is also included. In addition to labor breakdown, the model breaks out service contracts, water treatment costs, spares and equipment costs, miscellaneous costs, and periodic capital equipment requirements. S&L conducted a detailed review of the SunLab model and compared it to general power industry experience. Capital Cost, $/kWePDF Image | Assessment of Parabolic Trough and Power Tower Solar Technology Cost and Performance Forecasts
PDF Search Title:
Assessment of Parabolic Trough and Power Tower Solar Technology Cost and Performance ForecastsOriginal File Name Searched:
