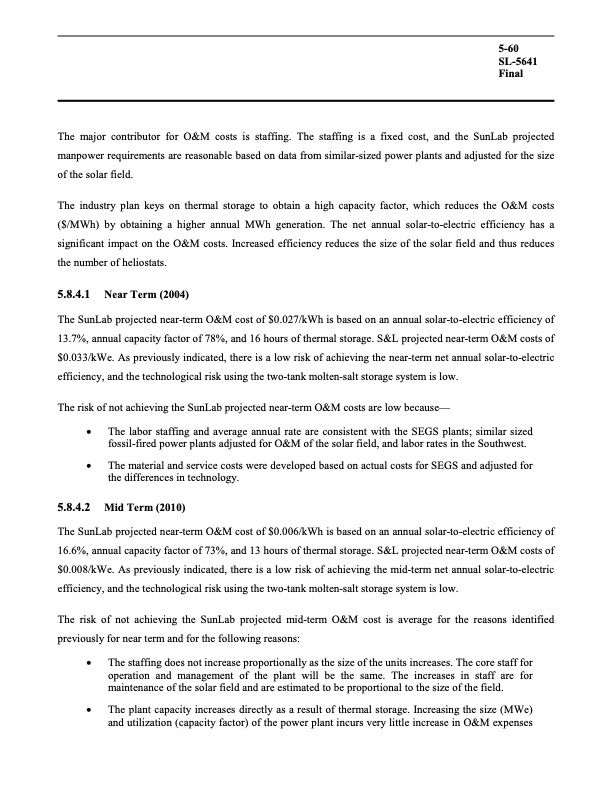

5-60 SL-5641 Final The major contributor for O&M costs is staffing. The staffing is a fixed cost, and the SunLab projected manpower requirements are reasonable based on data from similar-sized power plants and adjusted for the size of the solar field. The industry plan keys on thermal storage to obtain a high capacity factor, which reduces the O&M costs ($/MWh) by obtaining a higher annual MWh generation. The net annual solar-to-electric efficiency has a significant impact on the O&M costs. Increased efficiency reduces the size of the solar field and thus reduces the number of heliostats. 5.8.4.1 Near Term (2004) The SunLab projected near-term O&M cost of $0.027/kWh is based on an annual solar-to-electric efficiency of 13.7%, annual capacity factor of 78%, and 16 hours of thermal storage. S&L projected near-term O&M costs of $0.033/kWe. As previously indicated, there is a low risk of achieving the near-term net annual solar-to-electric efficiency, and the technological risk using the two-tank molten-salt storage system is low. The risk of not achieving the SunLab projected near-term O&M costs are low because— • The labor staffing and average annual rate are consistent with the SEGS plants; similar sized fossil-fired power plants adjusted for O&M of the solar field, and labor rates in the Southwest. • The material and service costs were developed based on actual costs for SEGS and adjusted for the differences in technology. 5.8.4.2 Mid Term (2010) The SunLab projected near-term O&M cost of $0.006/kWh is based on an annual solar-to-electric efficiency of 16.6%, annual capacity factor of 73%, and 13 hours of thermal storage. S&L projected near-term O&M costs of $0.008/kWe. As previously indicated, there is a low risk of achieving the mid-term net annual solar-to-electric efficiency, and the technological risk using the two-tank molten-salt storage system is low. The risk of not achieving the SunLab projected mid-term O&M cost is average for the reasons identified previously for near term and for the following reasons: • The staffing does not increase proportionally as the size of the units increases. The core staff for operation and management of the plant will be the same. The increases in staff are for maintenance of the solar field and are estimated to be proportional to the size of the field. • The plant capacity increases directly as a result of thermal storage. Increasing the size (MWe) and utilization (capacity factor) of the power plant incurs very little increase in O&M expensesPDF Image | Assessment of Parabolic Trough and Power Tower Solar Technology Cost and Performance Forecasts
