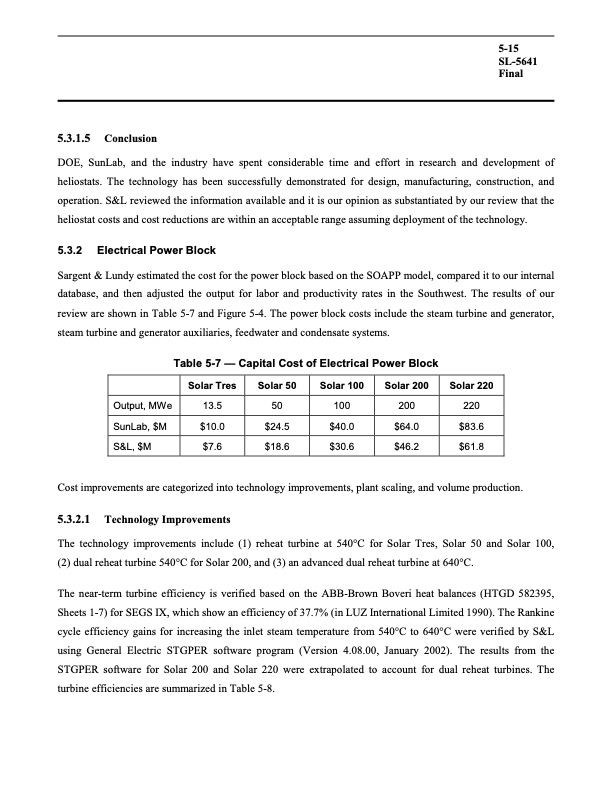

Text from PDF Page: 115
5.3.1.5 Conclusion DOE, SunLab, and the industry have spent considerable time and effort in research and development of heliostats. The technology has been successfully demonstrated for design, manufacturing, construction, and operation. S&L reviewed the information available and it is our opinion as substantiated by our review that the heliostat costs and cost reductions are within an acceptable range assuming deployment of the technology. 5.3.2 Electrical Power Block Sargent & Lundy estimated the cost for the power block based on the SOAPP model, compared it to our internal database, and then adjusted the output for labor and productivity rates in the Southwest. The results of our review are shown in Table 5-7 and Figure 5-4. The power block costs include the steam turbine and generator, steam turbine and generator auxiliaries, feedwater and condensate systems. Table 5-7 — Capital Cost of Electrical Power Block 5-15 SL-5641 Final Output, MWe SunLab, $M S&L, $M Solar Tres 13.5 $10.0 $7.6 Solar 50 50 $24.5 $18.6 Solar 100 100 $40.0 $30.6 Solar 200 200 $64.0 $46.2 Solar 220 220 $83.6 $61.8 Cost improvements are categorized into technology improvements, plant scaling, and volume production. 5.3.2.1 Technology Improvements The technology improvements include (1) reheat turbine at 540°C for Solar Tres, Solar 50 and Solar 100, (2) dual reheat turbine 540°C for Solar 200, and (3) an advanced dual reheat turbine at 640°C. The near-term turbine efficiency is verified based on the ABB-Brown Boveri heat balances (HTGD 582395, Sheets 1-7) for SEGS IX, which show an efficiency of 37.7% (in LUZ International Limited 1990). The Rankine cycle efficiency gains for increasing the inlet steam temperature from 540°C to 640°C were verified by S&L using General Electric STGPER software program (Version 4.08.00, January 2002). The results from the STGPER software for Solar 200 and Solar 220 were extrapolated to account for dual reheat turbines. The turbine efficiencies are summarized in Table 5-8.PDF Image | Assessment of Parabolic Trough and Power Tower Solar Technology Cost and Performance Forecasts
PDF Search Title:
Assessment of Parabolic Trough and Power Tower Solar Technology Cost and Performance ForecastsOriginal File Name Searched:
