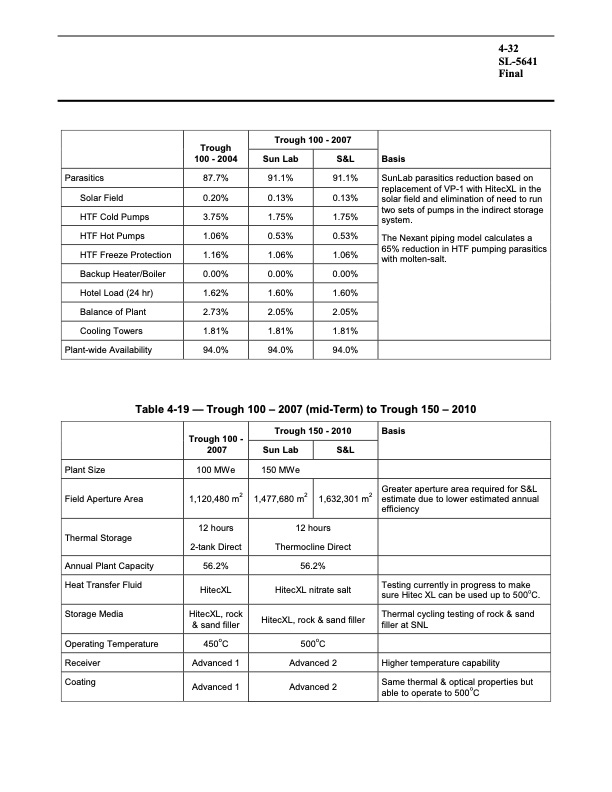

Trough 100 - 2004 87.7% 0.20% 3.75% 1.06% 1.16% 0.00% 1.62% 2.73% 1.81% 94.0% Trough 100 - 2007 Sun Lab S&L 91.1% 91.1% 0.13% 0.13% 1.75% 1.75% 0.53% 0.53% 1.06% 1.06% 0.00% 0.00% 1.60% 1.60% 2.05% 2.05% 1.81% 1.81% 94.0% 94.0% Basis 4-32 SL-5641 Final Parasitics Solar Field HTF Cold Pumps HTF Hot Pumps HTF Freeze Protection Backup Heater/Boiler Hotel Load (24 hr) Balance of Plant Cooling Towers Plant-wide Availability SunLab parasitics reduction based on replacement of VP-1 with HitecXL in the solar field and elimination of need to run two sets of pumps in the indirect storage system. The Nexant piping model calculates a 65% reduction in HTF pumping parasitics with molten-salt. Table 4-19 — Trough 100 – 2007 (mid-Term) to Trough 150 – 2010 Trough 100 - 2007 100 MWe 1,120,480 m2 12 hours 2-tank Direct 56.2% HitecXL HitecXL, rock & sand filler 450oC Advanced 1 Advanced 1 Trough 150 - 2010 Basis Greater aperture area required for S&L estimate due to lower estimated annual efficiency Testing currently in progress to make sure Hitec XL can be used up to 500oC. Thermal cycling testing of rock & sand filler at SNL Higher temperature capability Same thermal & optical properties but able to operate to 500oC Plant Size Field Aperture Area Thermal Storage Annual Plant Capacity Heat Transfer Fluid Storage Media Operating Temperature Receiver Coating Sun Lab 150 MWe 1,477,680 m2 S&L 1,632,301 m2 12 hours Thermocline Direct 56.2% HitecXL nitrate salt HitecXL, rock & sand filler 500oC Advanced 2 Advanced 2PDF Image | Assessment of Parabolic Trough and Power Tower Solar Technology Cost and Performance Forecasts
