Text from PDF Page: 076

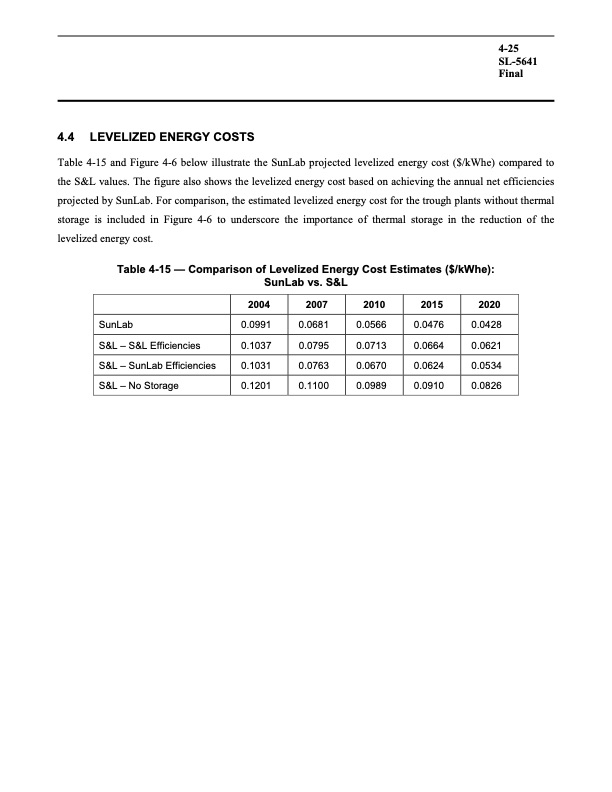

4.4 LEVELIZED ENERGY COSTS Table 4-15 and Figure 4-6 below illustrate the SunLab projected levelized energy cost ($/kWhe) compared to the S&L values. The figure also shows the levelized energy cost based on achieving the annual net efficiencies projected by SunLab. For comparison, the estimated levelized energy cost for the trough plants without thermal storage is included in Figure 4-6 to underscore the importance of thermal storage in the reduction of the levelized energy cost. Table 4-15 — Comparison of Levelized Energy Cost Estimates ($/kWhe): SunLab vs. S&L 4-25 SL-5641 Final SunLab S&L – S&L Efficiencies S&L – SunLab Efficiencies S&L – No Storage 2004 2007 2010 2015 0.0991 0.0681 0.0566 0.0476 0.1037 0.0795 0.0713 0.0664 0.1031 0.0763 0.0670 0.0624 0.1201 0.1100 0.0989 0.0910 2020 0.0428 0.0621 0.0534 0.0826PDF Image | Assessment of Parabolic Trough and Power Tower Solar Technology Cost and Performance Forecasts
