PDF Publication Title:
Text from PDF Page: 007

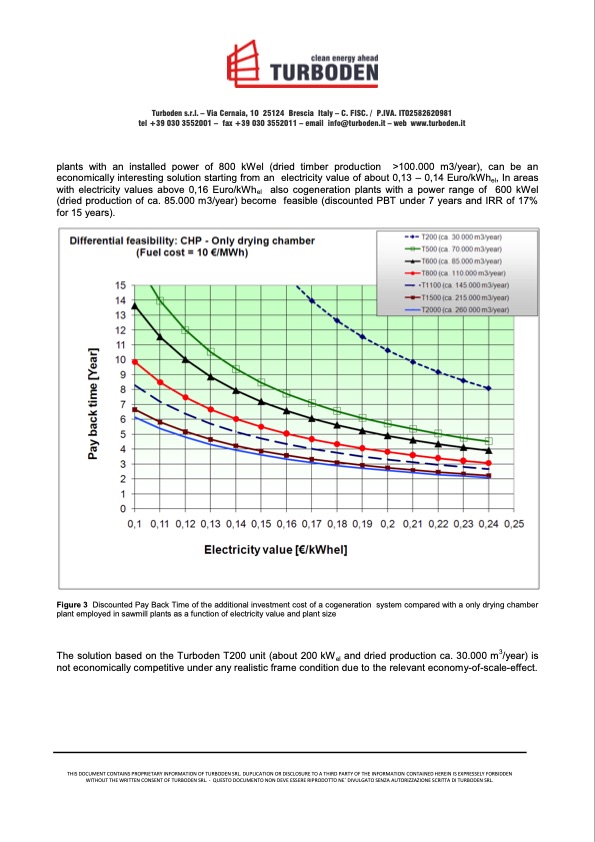

Turboden s.r.l. – Via Cernaia, 10 25124 Brescia Italy – C. FISC. / P.IVA. IT02582620981 tel +39 030 3552001 – fax +39 030 3552011 – email info@turboden.it – web www.turboden.it plants with an installed power of 800 kWel (dried timber production >100.000 m3/year), can be an economically interesting solution starting from an electricity value of about 0,13 – 0,14 Euro/kWhel, In areas with electricity values above 0,16 Euro/kWhel also cogeneration plants with a power range of 600 kWel (dried production of ca. 85.000 m3/year) become feasible (discounted PBT under 7 years and IRR of 17% for 15 years). Figure 3 Discounted Pay Back Time of the additional investment cost of a cogeneration system compared with a only drying chamber plant employed in sawmill plants as a function of electricity value and plant size The solution based on the Turboden T200 unit (about 200 kWel and dried production ca. 30.000 m3/year) is not economically competitive under any realistic frame condition due to the relevant economy-of-scale-effect. THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF TURBODEN SRL. DUPLICATION OR DISCLOSURE TO A THIRD PARTY OF THE INFORMATION CONTAINED HEREIN IS EXPRESSELY FORBIDDEN WITHOUT THE WRITTEN CONSENT OF TURBODEN SRL. - QUESTO DOCUMENTO NON DEVE ESSERE RIPRODOTTO NE` DIVULGATO SENZA AUTORIZZAZIONE SCRITTA DI TURBODEN SRL.PDF Image | APPLICATION OF ORC UNITS IN SAWMILLS. TECHNICAL-ECONOMIC CONSIDERATIONS
PDF Search Title:
APPLICATION OF ORC UNITS IN SAWMILLS. TECHNICAL-ECONOMIC CONSIDERATIONSOriginal File Name Searched:
08A03722_paper_turboden_segherie.pdfDIY PDF Search: Google It | Yahoo | Bing
