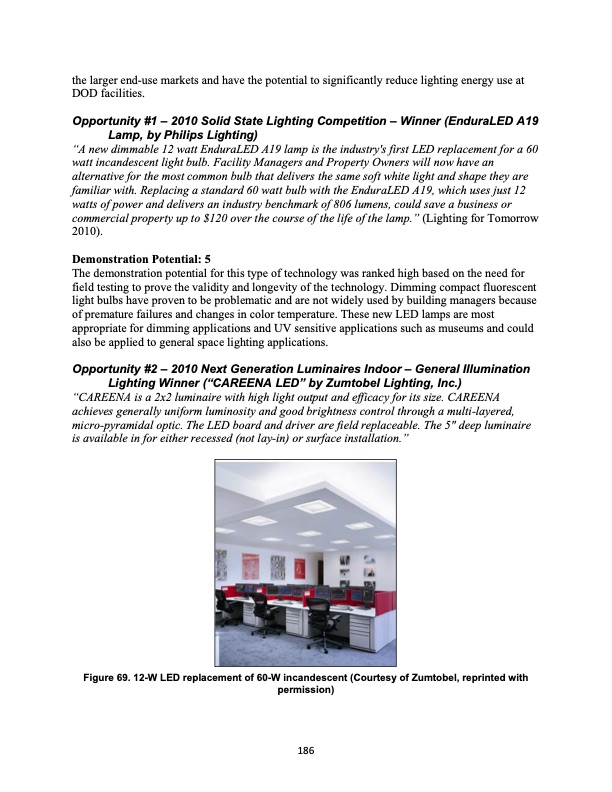

the larger end-use markets and have the potential to significantly reduce lighting energy use at DOD facilities. Opportunity #1 – 2010 Solid State Lighting Competition – Winner (EnduraLED A19 Lamp, by Philips Lighting) “A new dimmable 12 watt EnduraLED A19 lamp is the industry's first LED replacement for a 60 watt incandescent light bulb. Facility Managers and Property Owners will now have an alternative for the most common bulb that delivers the same soft white light and shape they are familiar with. Replacing a standard 60 watt bulb with the EnduraLED A19, which uses just 12 watts of power and delivers an industry benchmark of 806 lumens, could save a business or commercial property up to $120 over the course of the life of the lamp.” (Lighting for Tomorrow 2010). Demonstration Potential: 5 The demonstration potential for this type of technology was ranked high based on the need for field testing to prove the validity and longevity of the technology. Dimming compact fluorescent light bulbs have proven to be problematic and are not widely used by building managers because of premature failures and changes in color temperature. These new LED lamps are most appropriate for dimming applications and UV sensitive applications such as museums and could also be applied to general space lighting applications. Opportunity #2 – 2010 Next Generation Luminaires Indoor – General Illumination Lighting Winner (“CAREENA LED” by Zumtobel Lighting, Inc.) “CAREENA is a 2x2 luminaire with high light output and efficacy for its size. CAREENA achieves generally uniform luminosity and good brightness control through a multi-layered, micro-pyramidal optic. The LED board and driver are field replaceable. The 5" deep luminaire is available in for either recessed (not lay-in) or surface installation.” Figure 69. 12-W LED replacement of 60-W incandescent (Courtesy of Zumtobel, reprinted with permission) 186PDF Image | 4th Annual Chena Renewable Energy Fair
