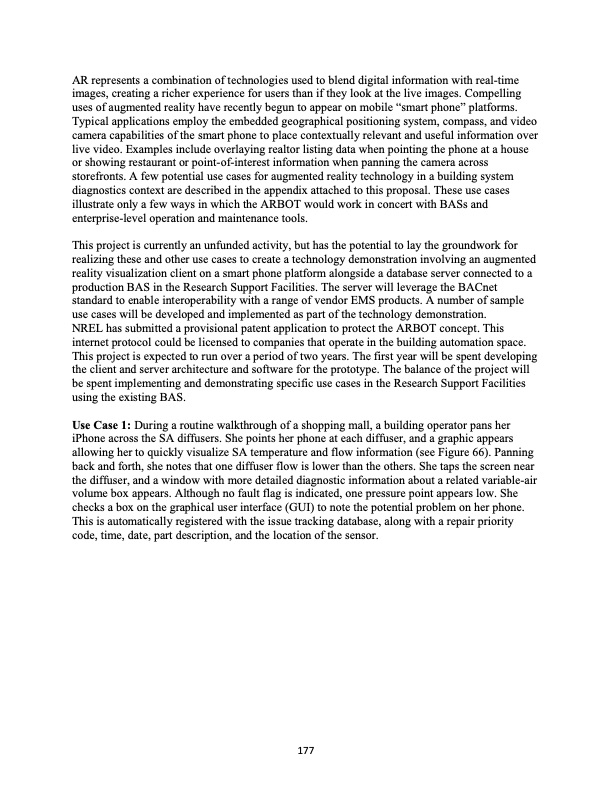

AR represents a combination of technologies used to blend digital information with real-time images, creating a richer experience for users than if they look at the live images. Compelling uses of augmented reality have recently begun to appear on mobile “smart phone” platforms. Typical applications employ the embedded geographical positioning system, compass, and video camera capabilities of the smart phone to place contextually relevant and useful information over live video. Examples include overlaying realtor listing data when pointing the phone at a house or showing restaurant or point-of-interest information when panning the camera across storefronts. A few potential use cases for augmented reality technology in a building system diagnostics context are described in the appendix attached to this proposal. These use cases illustrate only a few ways in which the ARBOT would work in concert with BASs and enterprise-level operation and maintenance tools. This project is currently an unfunded activity, but has the potential to lay the groundwork for realizing these and other use cases to create a technology demonstration involving an augmented reality visualization client on a smart phone platform alongside a database server connected to a production BAS in the Research Support Facilities. The server will leverage the BACnet standard to enable interoperability with a range of vendor EMS products. A number of sample use cases will be developed and implemented as part of the technology demonstration. NREL has submitted a provisional patent application to protect the ARBOT concept. This internet protocol could be licensed to companies that operate in the building automation space. This project is expected to run over a period of two years. The first year will be spent developing the client and server architecture and software for the prototype. The balance of the project will be spent implementing and demonstrating specific use cases in the Research Support Facilities using the existing BAS. Use Case 1: During a routine walkthrough of a shopping mall, a building operator pans her iPhone across the SA diffusers. She points her phone at each diffuser, and a graphic appears allowing her to quickly visualize SA temperature and flow information (see Figure 66). Panning back and forth, she notes that one diffuser flow is lower than the others. She taps the screen near the diffuser, and a window with more detailed diagnostic information about a related variable-air volume box appears. Although no fault flag is indicated, one pressure point appears low. She checks a box on the graphical user interface (GUI) to note the potential problem on her phone. This is automatically registered with the issue tracking database, along with a repair priority code, time, date, part description, and the location of the sensor. 177PDF Image | 4th Annual Chena Renewable Energy Fair
