Text from PDF Page: 127

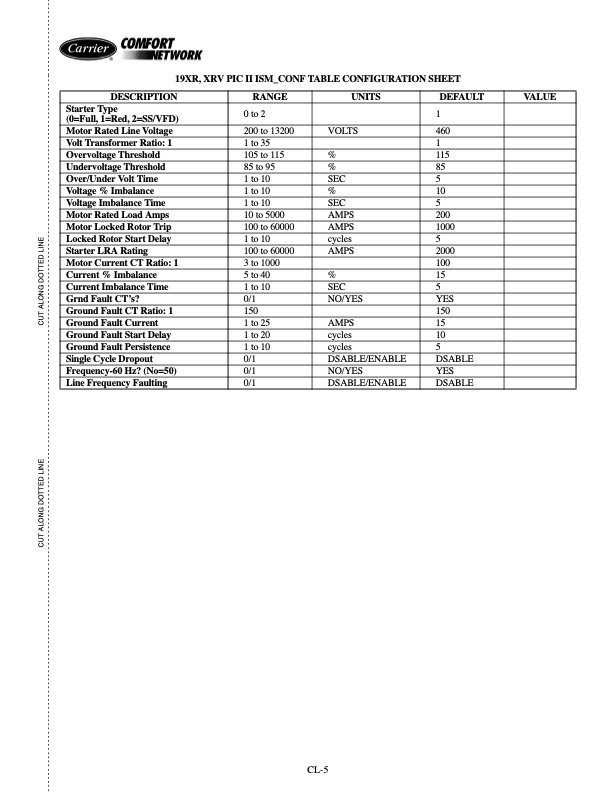

19XR, XRV PIC II ISM_CONF TABLE CONFIGURATION SHEET DESCRIPTION RANGE UNITS DEFAULT VALUE Starter Type (0=Full, 1=Red, 2=SS/VFD) 0 to 2 1 Motor Rated Line Voltage 200 to 13200 VOLTS 460 Volt Transformer Ratio: 1 1 to 35 1 Overvoltage Threshold 105 to 115 % 115 Undervoltage Threshold 85 to 95 % 85 Over/Under Volt Time 1 to 10 SEC 5 Voltage % Imbalance 1 to 10 % 10 Voltage Imbalance Time 1 to 10 SEC 5 Motor Rated Load Amps 10 to 5000 AMPS 200 Motor Locked Rotor Trip 100 to 60000 AMPS 1000 Locked Rotor Start Delay 1 to 10 cycles 5 Starter LRA Rating 100 to 60000 AMPS 2000 Motor Current CT Ratio: 1 3 to 1000 100 Current % Imbalance 5 to 40 % 15 Current Imbalance Time 1 to 10 SEC 5 Grnd Fault CT’s? 0/1 NO/YES YES Ground Fault CT Ratio: 1 150 150 Ground Fault Current 1 to 25 AMPS 15 Ground Fault Start Delay 1 to 20 cycles 10 Ground Fault Persistence 1 to 10 cycles 5 Single Cycle Dropout 0/1 DSABLE/ENABLE DSABLE Frequency-60 Hz? (No=50) 0/1 NO/YES YES Line Frequency Faulting 0/1 DSABLE/ENABLE DSABLE CL-5 CUT ALONG DOTTED LINE CUT ALONG DOTTED LINE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - -PDF Image | 19XR,XRV Hermetic Centrifugal Liquid Chillers 50/60 Hz With PIC II Controls and HFC-134a
