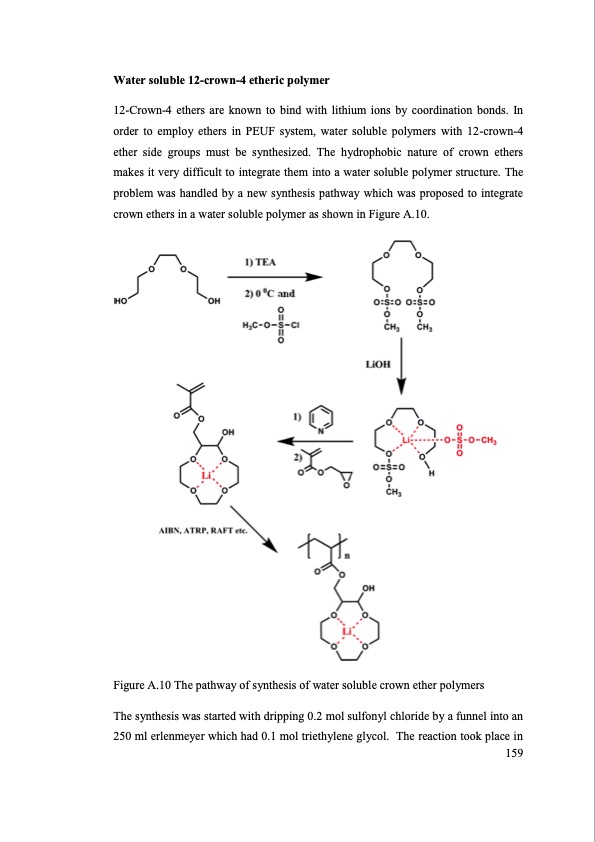

Water soluble 12-crown-4 etheric polymer 12-Crown-4 ethers are known to bind with lithium ions by coordination bonds. In order to employ ethers in PEUF system, water soluble polymers with 12-crown-4 ether side groups must be synthesized. The hydrophobic nature of crown ethers makes it very difficult to integrate them into a water soluble polymer structure. The problem was handled by a new synthesis pathway which was proposed to integrate crown ethers in a water soluble polymer as shown in Figure A.10. Figure A.10 The pathway of synthesis of water soluble crown ether polymers The synthesis was started with dripping 0.2 mol sulfonyl chloride by a funnel into an 250 ml erlenmeyer which had 0.1 mol triethylene glycol. The reaction took place in 159PDF Image | SEPARATION OF LITHIUM FROM BRINES
