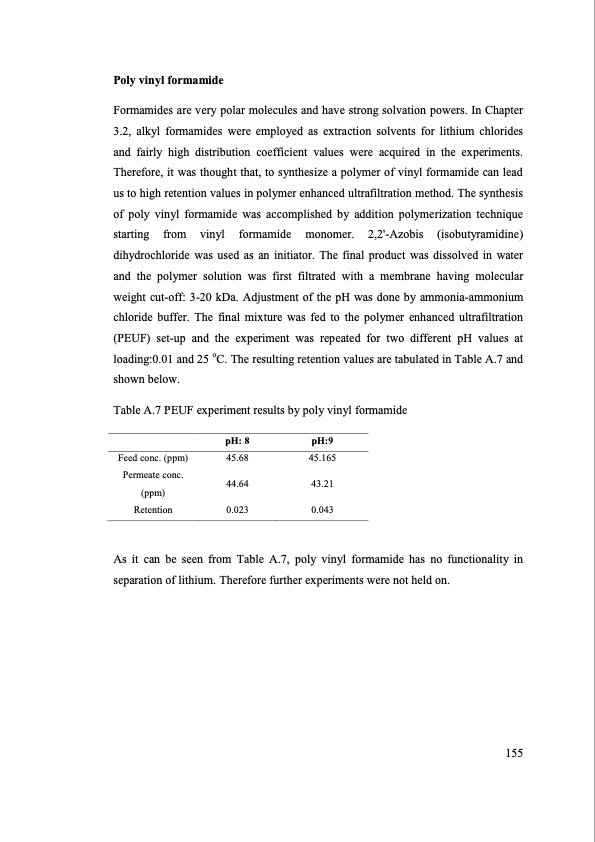

Poly vinyl formamide Formamides are very polar molecules and have strong solvation powers. In Chapter 3.2, alkyl formamides were employed as extraction solvents for lithium chlorides and fairly high distribution coefficient values were acquired in the experiments. Therefore, it was thought that, to synthesize a polymer of vinyl formamide can lead us to high retention values in polymer enhanced ultrafiltration method. The synthesis of poly vinyl formamide was accomplished by addition polymerization technique starting from vinyl formamide monomer. 2,2'-Azobis (isobutyramidine) dihydrochloride was used as an initiator. The final product was dissolved in water and the polymer solution was first filtrated with a membrane having molecular weight cut-off: 3-20 kDa. Adjustment of the pH was done by ammonia-ammonium chloride buffer. The final mixture was fed to the polymer enhanced ultrafiltration (PEUF) set-up and the experiment was repeated for two different pH values at loading:0.01 and 25 oC. The resulting retention values are tabulated in Table A.7 and shown below. Table A.7 PEUF experiment results by poly vinyl formamide Feed conc. (ppm) Permeate conc. (ppm) Retention pH: 8 45.68 44.64 0.023 pH:9 45.165 43.21 0.043 As it can be seen from Table A.7, poly vinyl formamide has no functionality in separation of lithium. Therefore further experiments were not held on. 155PDF Image | SEPARATION OF LITHIUM FROM BRINES
