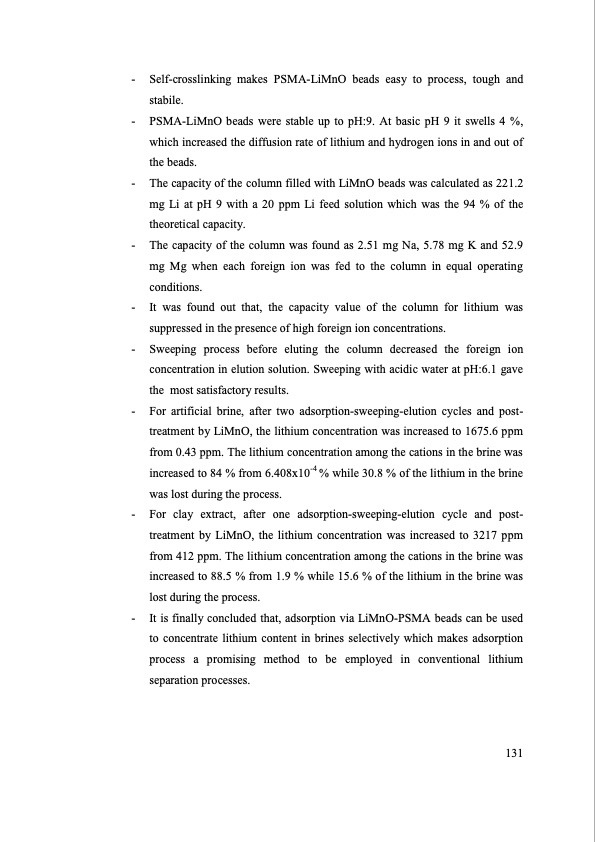

Text from PDF Page: 155
- Self-crosslinking makes PSMA-LiMnO beads easy to process, tough and stabile. - PSMA-LiMnO beads were stable up to pH:9. At basic pH 9 it swells 4 %, which increased the diffusion rate of lithium and hydrogen ions in and out of the beads. - The capacity of the column filled with LiMnO beads was calculated as 221.2 mg Li at pH 9 with a 20 ppm Li feed solution which was the 94 % of the theoretical capacity. - The capacity of the column was found as 2.51 mg Na, 5.78 mg K and 52.9 mg Mg when each foreign ion was fed to the column in equal operating conditions. - It was found out that, the capacity value of the column for lithium was suppressed in the presence of high foreign ion concentrations. - Sweeping process before eluting the column decreased the foreign ion concentration in elution solution. Sweeping with acidic water at pH:6.1 gave the most satisfactory results. - For artificial brine, after two adsorption-sweeping-elution cycles and post- treatment by LiMnO, the lithium concentration was increased to 1675.6 ppm from 0.43 ppm. The lithium concentration among the cations in the brine was increased to 84 % from 6.408x10-4 % while 30.8 % of the lithium in the brine was lost during the process. - For clay extract, after one adsorption-sweeping-elution cycle and post- treatment by LiMnO, the lithium concentration was increased to 3217 ppm from 412 ppm. The lithium concentration among the cations in the brine was increased to 88.5 % from 1.9 % while 15.6 % of the lithium in the brine was lost during the process. - It is finally concluded that, adsorption via LiMnO-PSMA beads can be used to concentrate lithium content in brines selectively which makes adsorption process a promising method to be employed in conventional lithium separation processes. 131PDF Image | SEPARATION OF LITHIUM FROM BRINES
