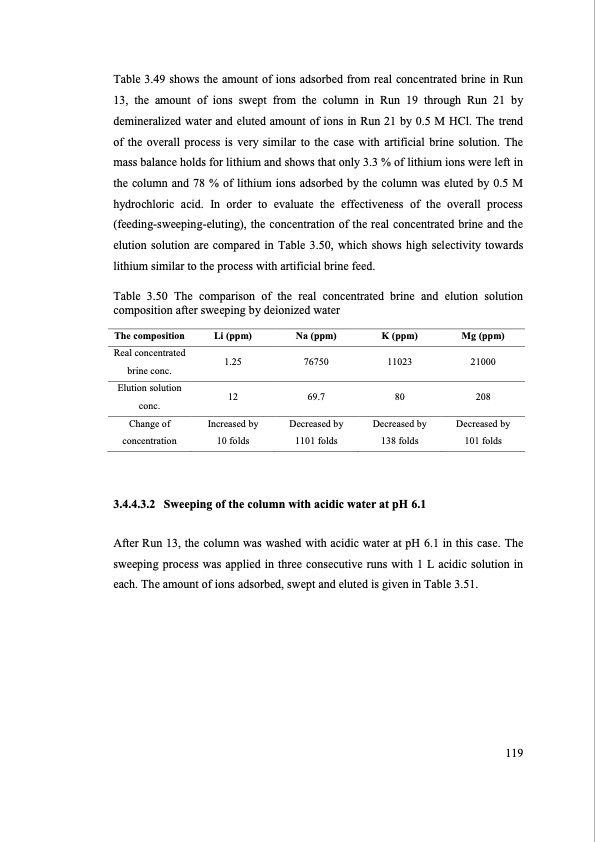

Table 3.49 shows the amount of ions adsorbed from real concentrated brine in Run 13, the amount of ions swept from the column in Run 19 through Run 21 by demineralized water and eluted amount of ions in Run 21 by 0.5 M HCl. The trend of the overall process is very similar to the case with artificial brine solution. The mass balance holds for lithium and shows that only 3.3 % of lithium ions were left in the column and 78 % of lithium ions adsorbed by the column was eluted by 0.5 M hydrochloric acid. In order to evaluate the effectiveness of the overall process (feeding-sweeping-eluting), the concentration of the real concentrated brine and the elution solution are compared in Table 3.50, which shows high selectivity towards lithium similar to the process with artificial brine feed. Table 3.50 The comparison of the real concentrated brine and elution solution composition after sweeping by deionized water The composition Real concentrated brine conc. Elution solution conc. Change of concentration Li (ppm) 1.25 12 Increased by 10 folds Na (ppm) 76750 69.7 Decreased by 1101 folds K (ppm) 11023 80 Decreased by 138 folds Mg (ppm) 21000 208 Decreased by 101 folds 3.4.4.3.2 Sweeping of the column with acidic water at pH 6.1 After Run 13, the column was washed with acidic water at pH 6.1 in this case. The sweeping process was applied in three consecutive runs with 1 L acidic solution in each. The amount of ions adsorbed, swept and eluted is given in Table 3.51. 119PDF Image | SEPARATION OF LITHIUM FROM BRINES
