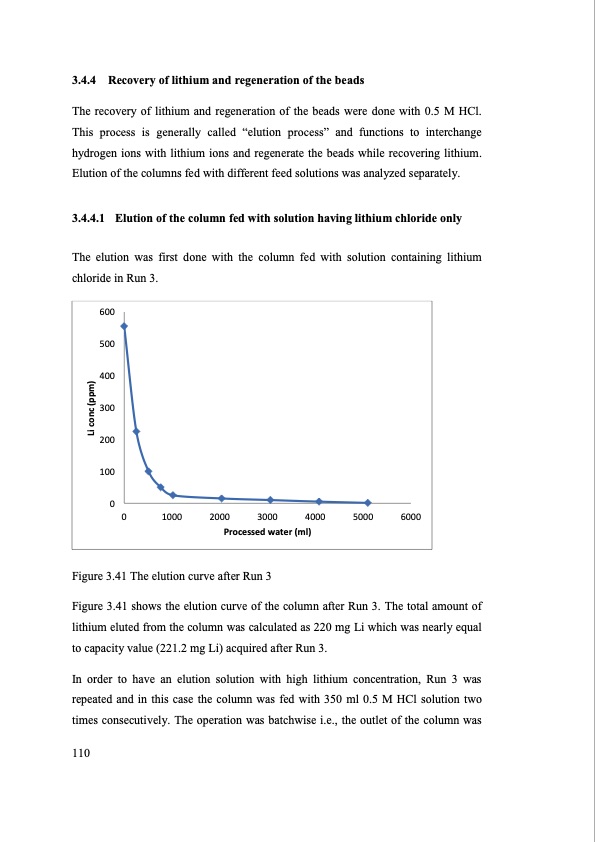

3.4.4 Recovery of lithium and regeneration of the beads The recovery of lithium and regeneration of the beads were done with 0.5 M HCl. This process is generally called “elution process” and functions to interchange hydrogen ions with lithium ions and regenerate the beads while recovering lithium. Elution of the columns fed with different feed solutions was analyzed separately. 3.4.4.1 Elution of the column fed with solution having lithium chloride only The elution was first done with the column fed with solution containing lithium chloride in Run 3. 600 500 400 300 200 100 0 0 1000 2000 3000 4000 5000 6000 Processed water (ml) Figure 3.41 The elution curve after Run 3 Figure 3.41 shows the elution curve of the column after Run 3. The total amount of lithium eluted from the column was calculated as 220 mg Li which was nearly equal to capacity value (221.2 mg Li) acquired after Run 3. In order to have an elution solution with high lithium concentration, Run 3 was repeated and in this case the column was fed with 350 ml 0.5 M HCl solution two times consecutively. The operation was batchwise i.e., the outlet of the column was 110 Li conc (ppm)PDF Image | SEPARATION OF LITHIUM FROM BRINES
