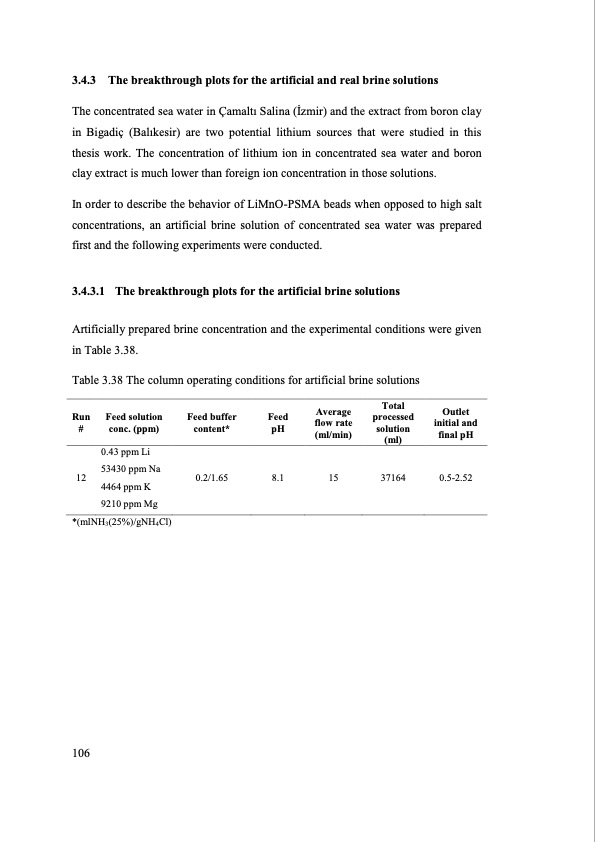

3.4.3 The breakthrough plots for the artificial and real brine solutions The concentrated sea water in Çamaltı Salina (İzmir) and the extract from boron clay in Bigadiç (Balıkesir) are two potential lithium sources that were studied in this thesis work. The concentration of lithium ion in concentrated sea water and boron clay extract is much lower than foreign ion concentration in those solutions. In order to describe the behavior of LiMnO-PSMA beads when opposed to high salt concentrations, an artificial brine solution of concentrated sea water was prepared first and the following experiments were conducted. 3.4.3.1 The breakthrough plots for the artificial brine solutions Artificially prepared brine concentration and the experimental conditions were given in Table 3.38. Table 3.38 The column operating conditions for artificial brine solutions Run # 12 Feed solution conc. (ppm) 0.43 ppm Li 53430 ppm Na 4464 ppm K 9210 ppm Mg Feed buffer content* 0.2/1.65 Average Feed flow rate pH (ml/min) 8.1 15 Total processed solution (ml) 37164 Outlet initial and final pH 0.5-2.52 *(mlNH3(25%)/gNH4Cl) 106PDF Image | SEPARATION OF LITHIUM FROM BRINES
