Text from PDF Page: 124

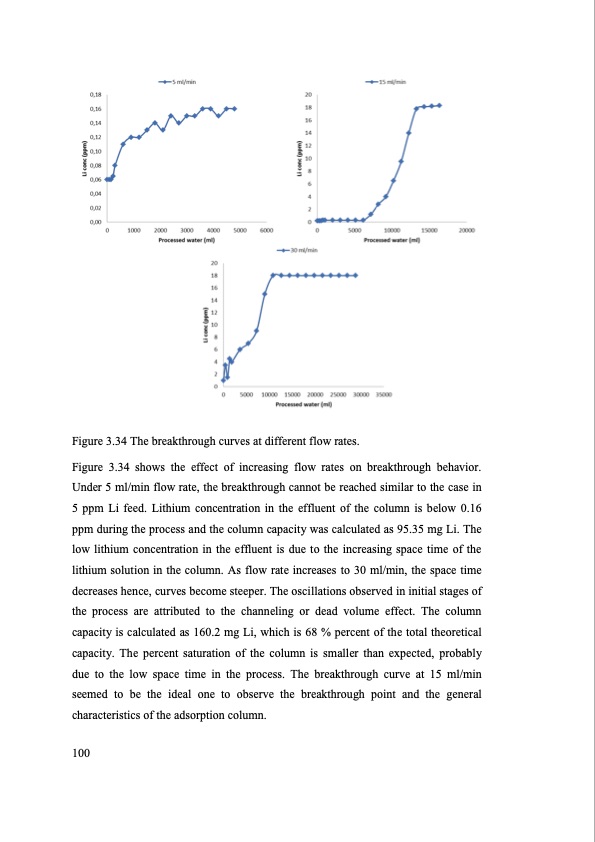

Figure 3.34 The breakthrough curves at different flow rates. Figure 3.34 shows the effect of increasing flow rates on breakthrough behavior. Under 5 ml/min flow rate, the breakthrough cannot be reached similar to the case in 5 ppm Li feed. Lithium concentration in the effluent of the column is below 0.16 ppm during the process and the column capacity was calculated as 95.35 mg Li. The low lithium concentration in the effluent is due to the increasing space time of the lithium solution in the column. As flow rate increases to 30 ml/min, the space time decreases hence, curves become steeper. The oscillations observed in initial stages of the process are attributed to the channeling or dead volume effect. The column capacity is calculated as 160.2 mg Li, which is 68 % percent of the total theoretical capacity. The percent saturation of the column is smaller than expected, probably due to the low space time in the process. The breakthrough curve at 15 ml/min seemed to be the ideal one to observe the breakthrough point and the general characteristics of the adsorption column. 100PDF Image | SEPARATION OF LITHIUM FROM BRINES
