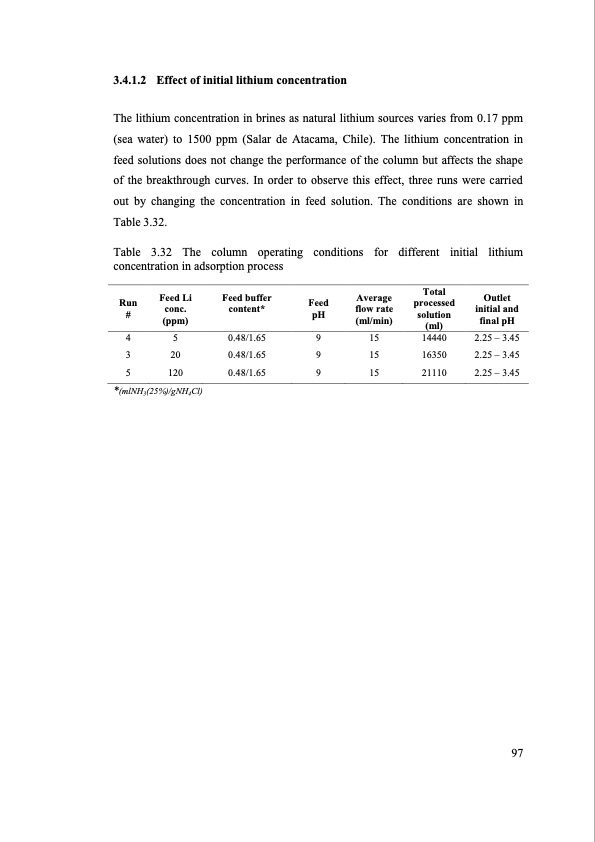

3.4.1.2 Effect of initial lithium concentration The lithium concentration in brines as natural lithium sources varies from 0.17 ppm (sea water) to 1500 ppm (Salar de Atacama, Chile). The lithium concentration in feed solutions does not change the performance of the column but affects the shape of the breakthrough curves. In order to observe this effect, three runs were carried out by changing the concentration in feed solution. The conditions are shown in Table 3.32. Table 3.32 The column operating conditions for different initial lithium concentration in adsorption process Run # 4 3 5 Feed Li conc. (ppm) 5 20 120 Feed buffer content* 0.48/1.65 0.48/1.65 0.48/1.65 Average Feed flow rate pH (ml/min) 9 15 9 15 9 15 Total processed solution (ml) 14440 16350 21110 Outlet initial and final pH 2.25 – 3.45 2.25 – 3.45 2.25 – 3.45 *(mlNH3(25%)/gNH4Cl) 97PDF Image | SEPARATION OF LITHIUM FROM BRINES
