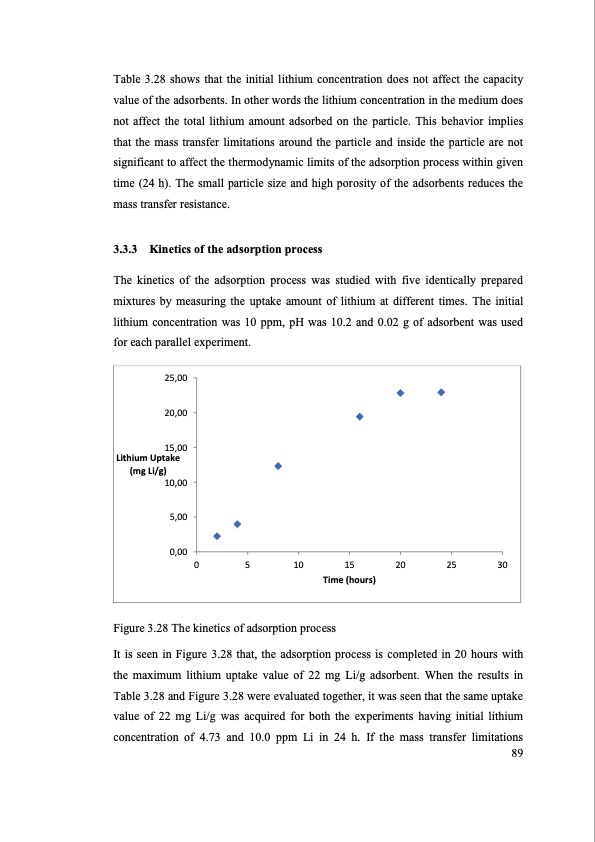

Table 3.28 shows that the initial lithium concentration does not affect the capacity value of the adsorbents. In other words the lithium concentration in the medium does not affect the total lithium amount adsorbed on the particle. This behavior implies that the mass transfer limitations around the particle and inside the particle are not significant to affect the thermodynamic limits of the adsorption process within given time (24 h). The small particle size and high porosity of the adsorbents reduces the mass transfer resistance. 3.3.3 Kinetics of the adsorption process The kinetics of the adsorption process was studied with five identically prepared mixtures by measuring the uptake amount of lithium at different times. The initial lithium concentration was 10 ppm, pH was 10.2 and 0.02 g of adsorbent was used for each parallel experiment. 25,00 20,00 15,00 Lithium Uptake (mg Li/g) 10,00 5,00 0,00 0 5 10 15 20 25 30 Time (hours) Figure 3.28 The kinetics of adsorption process It is seen in Figure 3.28 that, the adsorption process is completed in 20 hours with the maximum lithium uptake value of 22 mg Li/g adsorbent. When the results in Table 3.28 and Figure 3.28 were evaluated together, it was seen that the same uptake value of 22 mg Li/g was acquired for both the experiments having initial lithium concentration of 4.73 and 10.0 ppm Li in 24 h. If the mass transfer limitations 89PDF Image | SEPARATION OF LITHIUM FROM BRINES
