PDF Publication Title:
Text from PDF Page: 104

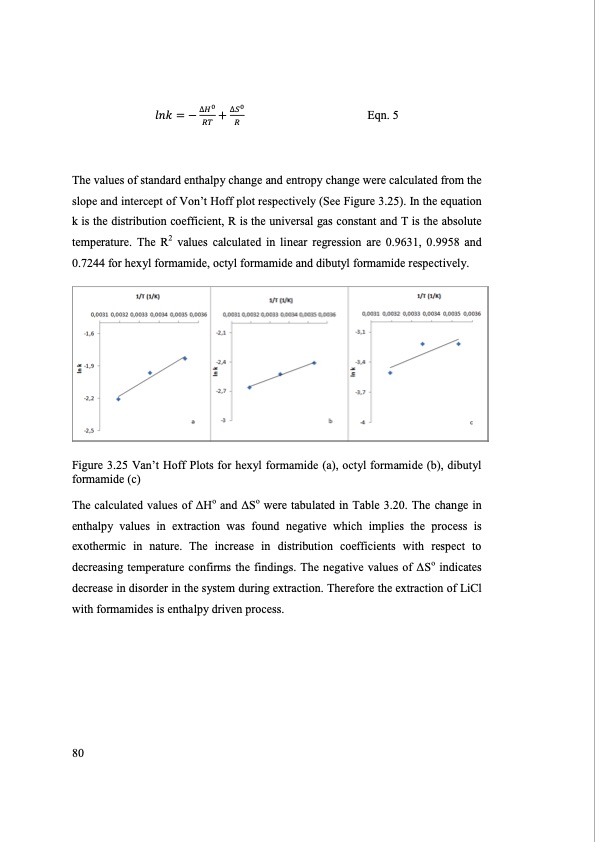

πππ = β βπ»0 + βπ0 Eqn. 5 π π π The values of standard enthalpy change and entropy change were calculated from the slope and intercept of Vonβt Hoff plot respectively (See Figure 3.25). In the equation k is the distribution coefficient, R is the universal gas constant and T is the absolute temperature. The R2 values calculated in linear regression are 0.9631, 0.9958 and 0.7244 for hexyl formamide, octyl formamide and dibutyl formamide respectively. Figure 3.25 Vanβt Hoff Plots for hexyl formamide (a), octyl formamide (b), dibutyl formamide (c) The calculated values of ΞHo and ΞSo were tabulated in Table 3.20. The change in enthalpy values in extraction was found negative which implies the process is exothermic in nature. The increase in distribution coefficients with respect to decreasing temperature confirms the findings. The negative values of ΞSo indicates decrease in disorder in the system during extraction. Therefore the extraction of LiCl with formamides is enthalpy driven process. 80PDF Image | SEPARATION OF LITHIUM FROM BRINES
