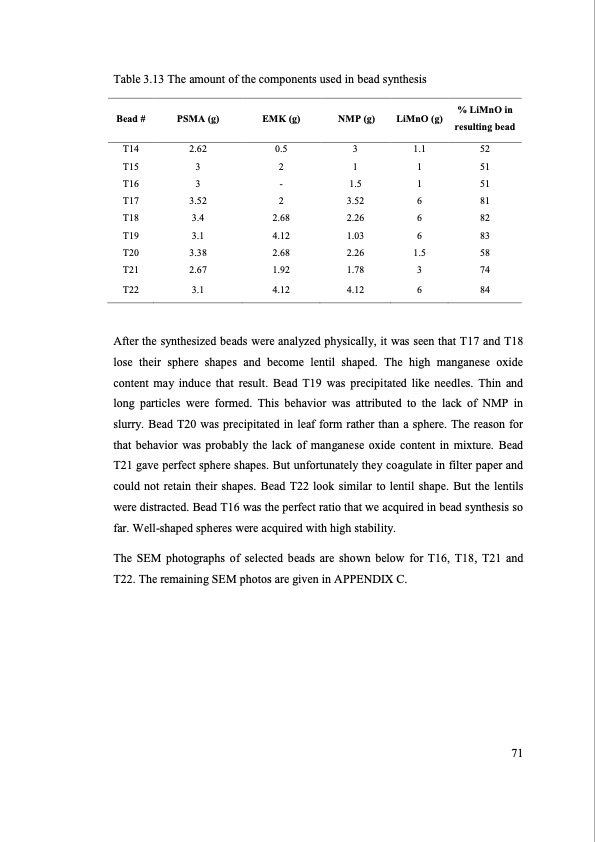

Table 3.13 The amount of the components used in bead synthesis Bead # T14 T15 T16 T17 T18 3.4 T19 3.1 T20 3.38 T21 2.67 T22 3.1 % LiMnO in resulting bead PSMA (g) EMK (g) NMP (g) LiMnO (g) 2.62 0.5 3 1.1 52 3 2 1 1 51 3 - 1.5 3.52 2 3.52 6 81 2.68 2.26 4.12 1.03 2.68 2.26 1.92 1.78 4.12 4.12 6 82 6 83 1.5 58 3 74 6 84 1 51 After the synthesized beads were analyzed physically, it was seen that T17 and T18 lose their sphere shapes and become lentil shaped. The high manganese oxide content may induce that result. Bead T19 was precipitated like needles. Thin and long particles were formed. This behavior was attributed to the lack of NMP in slurry. Bead T20 was precipitated in leaf form rather than a sphere. The reason for that behavior was probably the lack of manganese oxide content in mixture. Bead T21 gave perfect sphere shapes. But unfortunately they coagulate in filter paper and could not retain their shapes. Bead T22 look similar to lentil shape. But the lentils were distracted. Bead T16 was the perfect ratio that we acquired in bead synthesis so far. Well-shaped spheres were acquired with high stability. The SEM photographs of selected beads are shown below for T16, T18, T21 and T22. The remaining SEM photos are given in APPENDIX C. 71PDF Image | SEPARATION OF LITHIUM FROM BRINES
