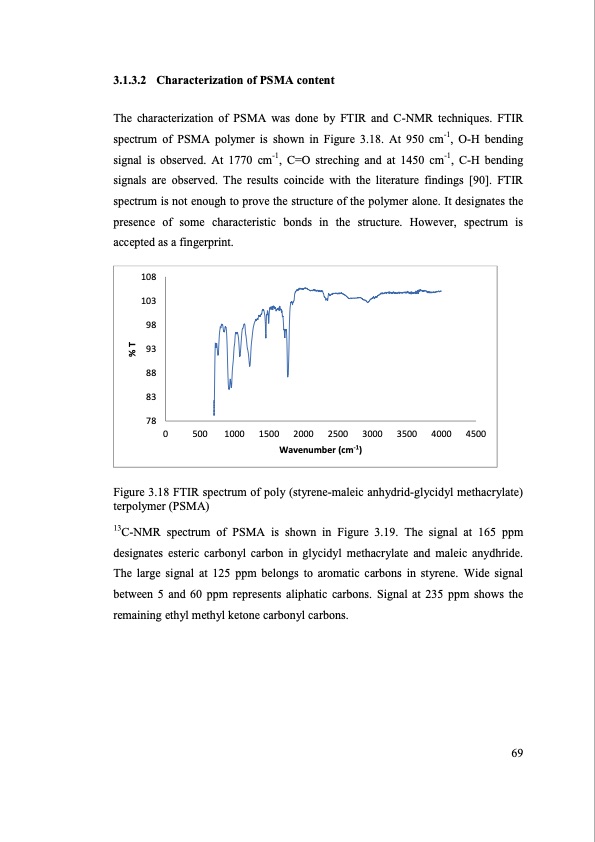

3.1.3.2 Characterization of PSMA content The characterization of PSMA was done by FTIR and C-NMR techniques. FTIR spectrum of PSMA polymer is shown in Figure 3.18. At 950 cm-1, O-H bending signal is observed. At 1770 cm-1, C=O streching and at 1450 cm-1, C-H bending signals are observed. The results coincide with the literature findings [90]. FTIR spectrum is not enough to prove the structure of the polymer alone. It designates the presence of some characteristic bonds in the structure. However, spectrum is accepted as a fingerprint. 108 103 98 93 88 83 78 0 500 1000 1500 2000 2500 3000 3500 4000 4500 Wavenumber (cm-1) Figure 3.18 FTIR spectrum of poly (styrene-maleic anhydrid-glycidyl methacrylate) terpolymer (PSMA) 13C-NMR spectrum of PSMA is shown in Figure 3.19. The signal at 165 ppm designates esteric carbonyl carbon in glycidyl methacrylate and maleic anydhride. The large signal at 125 ppm belongs to aromatic carbons in styrene. Wide signal between 5 and 60 ppm represents aliphatic carbons. Signal at 235 ppm shows the remaining ethyl methyl ketone carbonyl carbons. 69 %TPDF Image | SEPARATION OF LITHIUM FROM BRINES
