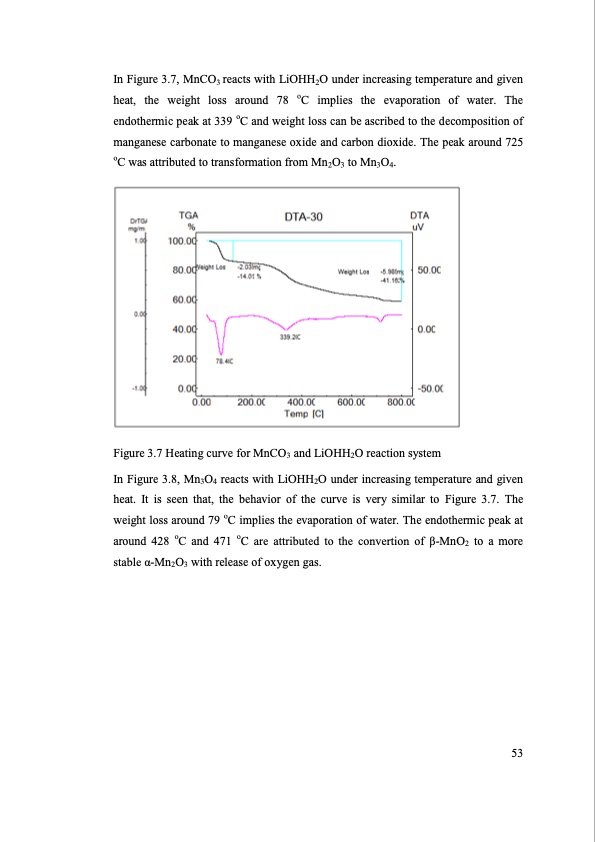

In Figure 3.7, MnCO3 reacts with LiOHH2O under increasing temperature and given heat, the weight loss around 78 oC implies the evaporation of water. The endothermic peak at 339 oC and weight loss can be ascribed to the decomposition of manganese carbonate to manganese oxide and carbon dioxide. The peak around 725 oC was attributed to transformation from Mn2O3 to Mn3O4. Figure 3.7 Heating curve for MnCO3 and LiOHH2O reaction system In Figure 3.8, Mn3O4 reacts with LiOHH2O under increasing temperature and given heat. It is seen that, the behavior of the curve is very similar to Figure 3.7. The weight loss around 79 oC implies the evaporation of water. The endothermic peak at around 428 oC and 471 oC are attributed to the convertion of β-MnO2 to a more stable α-Mn2O3 with release of oxygen gas. 53PDF Image | SEPARATION OF LITHIUM FROM BRINES
