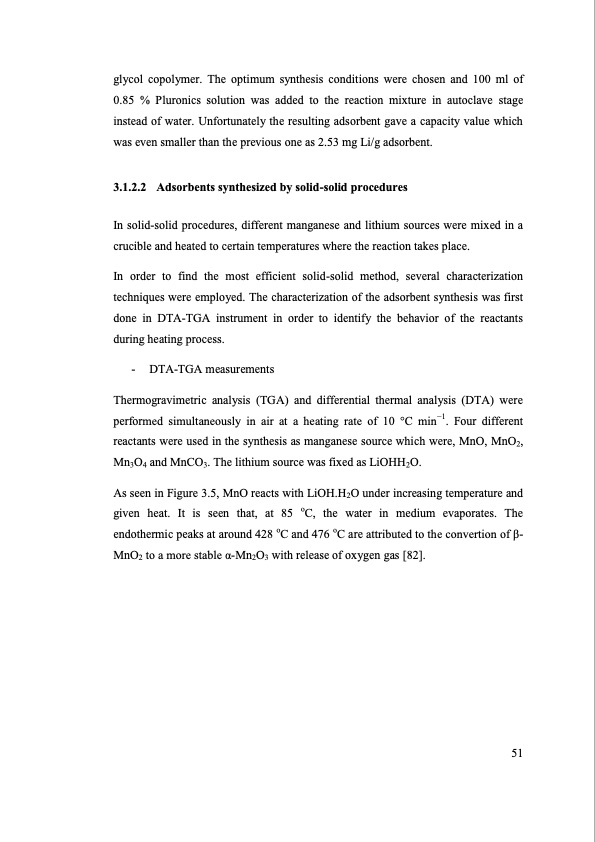

glycol copolymer. The optimum synthesis conditions were chosen and 100 ml of 0.85 % Pluronics solution was added to the reaction mixture in autoclave stage instead of water. Unfortunately the resulting adsorbent gave a capacity value which was even smaller than the previous one as 2.53 mg Li/g adsorbent. 3.1.2.2 Adsorbents synthesized by solid-solid procedures In solid-solid procedures, different manganese and lithium sources were mixed in a crucible and heated to certain temperatures where the reaction takes place. In order to find the most efficient solid-solid method, several characterization techniques were employed. The characterization of the adsorbent synthesis was first done in DTA-TGA instrument in order to identify the behavior of the reactants during heating process. - DTA-TGA measurements Thermogravimetric analysis (TGA) and differential thermal analysis (DTA) were performed simultaneously in air at a heating rate of 10 °C min−1. Four different reactants were used in the synthesis as manganese source which were, MnO, MnO2, Mn3O4 and MnCO3. The lithium source was fixed as LiOHH2O. As seen in Figure 3.5, MnO reacts with LiOH.H2O under increasing temperature and given heat. It is seen that, at 85 oC, the water in medium evaporates. The endothermic peaks at around 428 oC and 476 oC are attributed to the convertion of β- MnO2 to a more stable α-Mn2O3 with release of oxygen gas [82]. 51PDF Image | SEPARATION OF LITHIUM FROM BRINES
