PDF Publication Title:
Text from PDF Page: 068

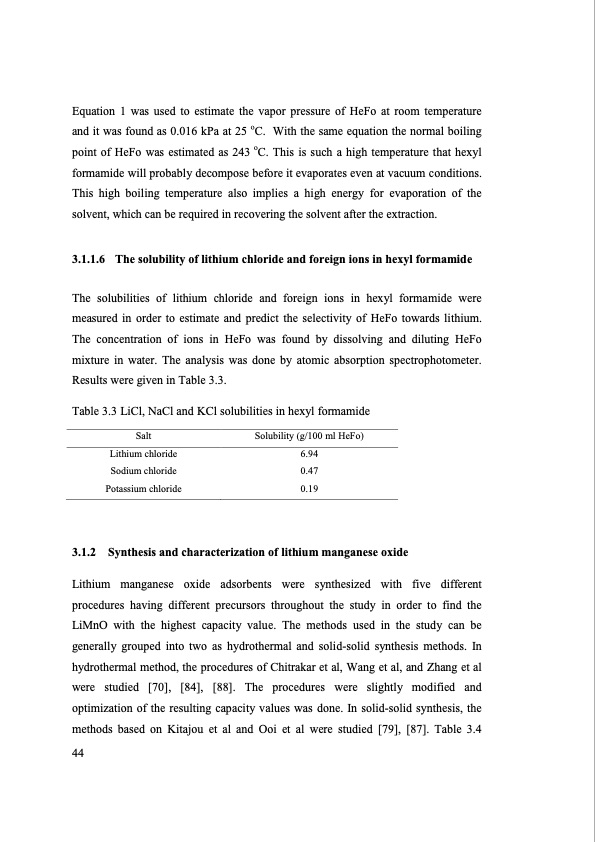

Equation 1 was used to estimate the vapor pressure of HeFo at room temperature and it was found as 0.016 kPa at 25 oC. With the same equation the normal boiling point of HeFo was estimated as 243 oC. This is such a high temperature that hexyl formamide will probably decompose before it evaporates even at vacuum conditions. This high boiling temperature also implies a high energy for evaporation of the solvent, which can be required in recovering the solvent after the extraction. 3.1.1.6 The solubility of lithium chloride and foreign ions in hexyl formamide The solubilities of lithium chloride and foreign ions in hexyl formamide were measured in order to estimate and predict the selectivity of HeFo towards lithium. The concentration of ions in HeFo was found by dissolving and diluting HeFo mixture in water. The analysis was done by atomic absorption spectrophotometer. Results were given in Table 3.3. Table 3.3 LiCl, NaCl and KCl solubilities in hexyl formamide Salt Lithium chloride Sodium chloride Potassium chloride Solubility (g/100 ml HeFo) 6.94 0.47 0.19 3.1.2 Synthesis and characterization of lithium manganese oxide Lithium manganese oxide adsorbents were synthesized with five different procedures having different precursors throughout the study in order to find the LiMnO with the highest capacity value. The methods used in the study can be generally grouped into two as hydrothermal and solid-solid synthesis methods. In hydrothermal method, the procedures of Chitrakar et al, Wang et al, and Zhang et al were studied [70], [84], [88]. The procedures were slightly modified and optimization of the resulting capacity values was done. In solid-solid synthesis, the methods based on Kitajou et al and Ooi et al were studied [79], [87]. Table 3.4 44PDF Image | SEPARATION OF LITHIUM FROM BRINES
PDF Search Title:
SEPARATION OF LITHIUM FROM BRINESOriginal File Name Searched:
separation-lithium-from-brine.pdfDIY PDF Search: Google It | Yahoo | Bing
